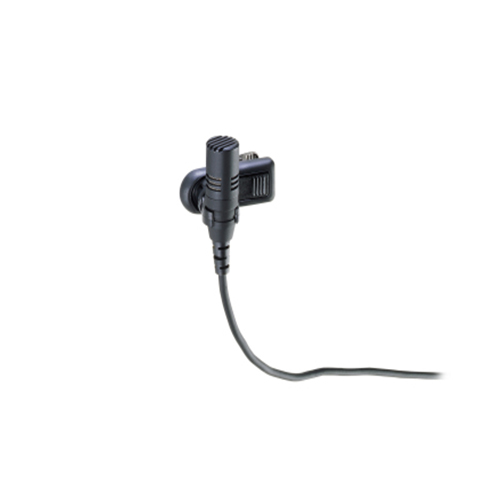

The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI. The ES943C is intended to be worn on the clothing for excellent, unobtrusive sound pickup. The microphone’s wide-range capability ensures clean, accurate reproduction with high intelligibility for speakers, singers and other performers. Its low-profile element provides a uniform cardioid polar pattern with 120º acceptance angle. It is equipped with an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone offers unsurpassed immunity from radio frequency interference thanks to Audio-Technica’s UniGuard® innovations.

Microphone
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Cardioid
Frequency Response	30 – 20,000 Hz
Low Frequency Roll Off	80 Hz, 18 dB/octave
Open Circuit Sensitivity	-40 dB (10.0 mV) re 1V at 1 Pa
Maximum Input Sound Level	138 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range	109 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	65 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA typical
Switches	Flat, roll-off
Cable	1.4 m (55″) long (permanently attached to microphone), 2.2 mm (0.09″) diameter, 2-conductor shielded cable, terminated with TA3F-type connector
Accessories Included	AT8110 foam windscreen; AT8460 clothing clip; AT8538 power module; belt clip
