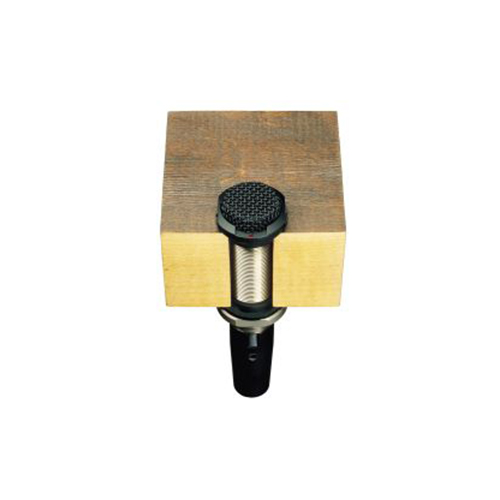

Cardioid Wide Range Fixed Charge Condenser Boundary Microphone White ยี่ห้อ Audio-Technica รุ่น ES947W
The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI. This low-profile cardioid condenser boundary microphone is recommended for unobtrusive table-, ceiling-, or panel-mount applications in high-quality sound reinforcement, professional recording and teleconferencing. Designed for permanent installation, the microphone is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. Protected by a rugged all-metal case with a two-layer steel mesh grille, the micropphone has a cardioid pattern for enhanced gain before feedback and improved signal-to-noise ratio. It is available in two colors: black (ES947) and white (ES947W).
Features
- Designed for surface-mount applications such as high-quality sound reinforcement, professional recording and teleconferencing Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle Mounts unobtrusively in table-tops, ceilings and wall panels Self-contained power module with XLRM-type output connector Rugged all-metal case with a two-layer steel mesh grille Isolators provide mechanical dampening of mounting-surface vibration Requires 11V to 52V DC phantom power UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) Available in two colors: black (ES947) and white (ES947W) RoHS compliant—free from all substances specified in the EU directive on hazardous substances
| SKU | ES947W |
|---|---|
| FREQUENCY RESPONSE | 40-12,000 Hz |
| IMPEDANCE | 200 ohms |
| ACCESSORIES | One pair isolators |
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Half-cardioid (Cardioid in hemisphere above mounting surface) |
| OPEN CIRCUIT SENSITIVITY | -42 dB (7.9 mV) re 1V at 1 Pa |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 2 mA typical |
| MAXIMUM INPUT SOUND LEVEL | 142 dB SPL, 1 kHz at 1% T.H.D. |
| SIGNAL TO NOISE RATIO | 65 dB, 1 kHz at 1 Pa |
| DYNAMIC RANGE | 113 dB, 1 kHz at Max SPL |
| DIMENSIONS | 69.0 mm (2.72″) long,30.0 mm (1.18″) diameter |
