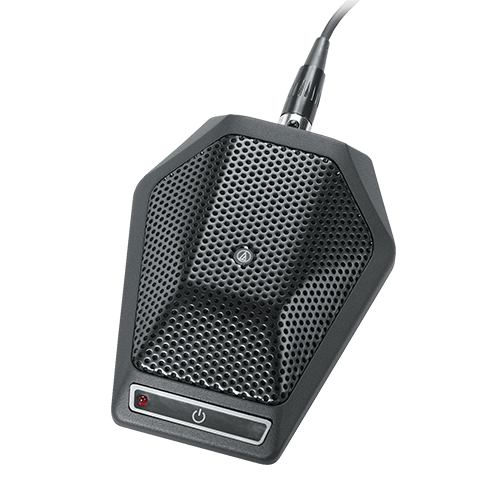

Cardioid Condenser Boundary Microphone with local or remote switching ยี่ห้อ Audio-Technica รุ่น ES961RCx
This product has been discontinued. Please see the U891RCb. The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI. A wide range condenser microphone with a cardioid polar pattern, the ES961RC is equipped with local or remote switching options. For flexible control in conference and boardroom installations, the unit’s external contact closure ability allows a user to trigger an external device—a camera, for instance—from a switch on the microphone. Another ease-of-use feature: the microphone’s activation switch can be set to three operating modes: touch-on/touch-off, press to talk, and press to mute. The mic is also equipped an 80 Hz low-cut UniSteep® filter to reduce pickup of low-frequency ambient noise. Its red LED status indicator can be controlled remotely. UniGuard® innovations offer unsurpassed immunity from radio frequency interference; interchangeable elements are available in cardioid, hypercardioid and omnidirectional polar patterns; a unique rotating PivotPoint® connector changes the cable exit point—no tools required. It requires 11 to 52V DC phantom power, which operates the microphone and switch circuitry.
Features
- Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
- Activation switch can be set to any of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute”
- External contact closure capability permits control of remote devices from microphone switch
- External LED control allows for accurate depiction of the live status of the microphone
- PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
- Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Requires 11V to 52V DC phantom power
- Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
- Low-profile design with low-reflectance black finish for minimum visibility
Specifications
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Half-cardioid (cardioid in hemisphere above mounting surface) |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -34 dB (19.9 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 130 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 104 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 4 mA typical |
| Switches | Activation: on/off; Switch function: press on/off, momentary on, momentary off; Control: local, remote, LED remote; Flat, roll-off |
| Weight | 266 g (9.4 oz) |
| Cable | 7.6 m (25.0′) long, 3.2 mm (0.13″) diameter, 5-conductor shielded cable (2 conductors under shield; 3 control wires outside shield); TA5F-type connector at microphone end, output end stripped and tinned for connection to electronic device |
| Dimensions | 108.0 mm (4.25″) long, 84.0 mm (3.31″) maximum width, 23.0 mm (0.91) height |
| Output Connector | TB5M-type |
| Optional Interchangeable Elements | UE-O omnidirectional (360°) UE-H hypercardioid (100°) |
| Accessories Included | Soft protective pouch |
