| Features |
WA560-WW |
WA538-WW |
WA536-WW |
WA530-WW |
WA510H-WW |
| Weight |
0.925kg |
0.7Kg |
0.728kg |
0.34kg |
0.25kg |
| Dimensions (excluding mounting accessories) |
225x225x 55mm |
183 x 183 x 40mm |
215 x 215 x 47.5mm |
170 x 170 X35.5mm |
150 × 86 × 36.8mm |
| Speed |
1733Mbps (5G) 800Mbps (2.4G) |
1733Mbps (5G) 867Mbps (5G) 400Mbps (2.4G) |
867Mbps (5G) 867Mbps (5G) 400Mbps (2.4G) |
867Mbps (5G) 400Mbps (2.4G) |
867Mbps (5G) 300Mbps (2.4G) |
| Fixed port |
Two 10/100/1000Mbps Ethernet ports (both support PoE+) Network ports support link aggregation(LACP) for redundancy and increased capacity One console port One USB port |
Two 10/100/1000Mbps Ethernet ports (one of two works on PoE+) Network ports support link aggregation(LACP) for redundancy and increased capacity One console port One USB port |
Two 10/100/1000Mbps Ethernet ports (only GE#1 supports PoE+) Network ports support link aggregation(LACP) for redundancy and increased capacity One console port |
Two 10/100/1000Mbps Ethernet ports (one of two works on PoE+) Network ports support link aggregation(LACP) for redundancy and increased capacity One console port One USB port |

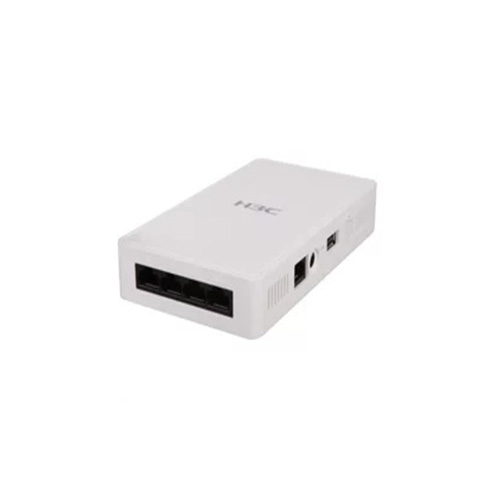

Front panel: 4×10/100/1000Mbps Ethernet ports 1x RJ45 pass-through port 1x USB port 1x Console port Back panel: 1x uplink GE port (10/100/1000Mbps) 1 x RJ45 pass-through port |
| Local power supply |
NULL |
54VDC |
54VDC |
54VDC |
54VDC |
| Built-in antenna |
Dual-band low-E omni-directional antenna |
Dual-band low-E omni-directional antenna |
Dual-band low-E omni-directional antenna |
Dual-band low-E omni-directional antenna |
Dual-band low-E omni-directional antenna |
| Antenna gain |
2.4GHz: 5dBi 5GHz: 4.7dBi |
2.4GHz: 5.3dBi 5GHz: 7dBi |
2.4GHz: 6dBi 5GHz: 6dBi |
2.4GHz: 3.8dBi 5GHz: 3.1dBi |
2.4GHz: 3.4dBi 5GHz: 3.4dBi |
| Maximum transmit power(Combined power, limited by local laws and regulations) |
2.4GHz: 15dBm 5GHz: 22dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm 5GHz: 21dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm 5GHz: 24dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm 5GHz: 23dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm 5GHz: 20dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power |
1dBm |
1dBm |
1dBm |
1dBm |
1dBm |
| Power consumption |
<25W |
<25W |
<15W |
<12.95W (without USB) |
<12.95W |
| Radio Specifications: Max. number of STA per radio |
256 |
256 |
256 |
256 |
124 |
| Radio Specifications: Max. number of SSIDs per radio |
16 |
16 |
16 |
16 |
16 |
| Operating temperature/storage temperature |
Operating Tem: -10 ºC ~ 55 ºC ; 0ºC～45ºC(Recommended) Storage Tem: -40ºC～70ºC |
0ºC～40ºC/-40ºC～70ºC |
| Operating humidity/storage humidity |
5% to 95% (non-condensing) |
| PoE |
802.3af/802.3at compatible power supply |
| Operating frequencies |
802.11ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz 802.11b/g/n : 2.4GHz-2.483GHz |
| Modulation |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM (11n): MSC 0-15 (0-31 for WA560) MIMO-OFDM (11ac): MCS 0-9 |
| Modulation mode |
11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| Safety compliance |
IEC 60950-1, EN 60950-1 |
| EMC |
EN 301489-1, EN 301489-17, EN 55032, EN 55024, EN 60601-1-2 |
| Radio frequency certification |
EN 300 328, EN 301 893 |
| Health |
EN 50385 |
