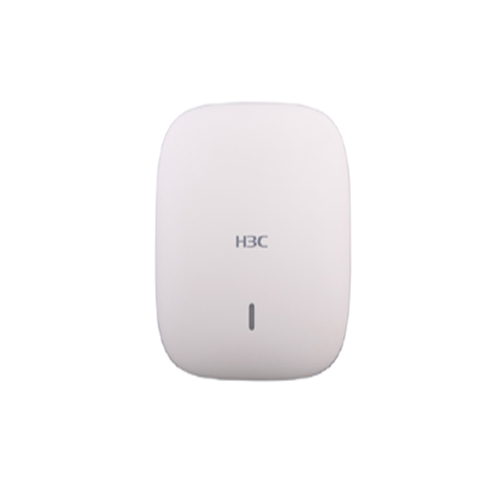

Access Point ยี่ห้อ H3C รุ่น EWP-WA530-WW
| Features | WA560-WW | WA538-WW | WA536-WW | WA530-WW | WA510H-WW |
| Weight | 0.925kg | 0.7Kg | 0.728kg | 0.34kg | 0.25kg |
| Dimensions (excluding mounting accessories) | 225x225x 55mm | 183 x 183 x 40mm | 215 x 215 x 47.5mm | 170 x 170 X35.5mm | 150 × 86 × 36.8mm |
| Speed | 1733Mbps (5G)800Mbps (2.4G) | 1733Mbps (5G)867Mbps (5G)
400Mbps (2.4G) |
867Mbps (5G)867Mbps (5G)
400Mbps (2.4G) |
867Mbps (5G)400Mbps (2.4G) | 867Mbps (5G)300Mbps (2.4G) |
| Fixed port | Two 10/100/1000Mbps Ethernet ports (both support PoE+)Network ports support link aggregation(LACP) for redundancy and increased capacity
One console port One USB port |
Two 10/100/1000Mbps Ethernet ports(one of two works on PoE+)
Network ports support link aggregation(LACP) for redundancy and increased capacity One console port One USB port |
Two10/100/1000Mbps Ethernet ports
(only GE#1 supports PoE+) Network ports support link aggregation(LACP) for redundancy and increased capacity One console port |
Two 10/100/1000Mbps Ethernet ports(one of two works on PoE+)
Network ports support link aggregation(LACP) for redundancy and increased capacity One console port One USB port |
Front panel:4×10/100/1000Mbps Ethernet ports
1x RJ45 pass-through port 1x USB port 1x Console port Back panel: 1x uplink GE port (10/100/1000Mbps) 1 x RJ45 pass-through port |
| Local power supply | NULL | 54VDC | 54VDC | 54VDC | 54VDC |
| Built-in antenna | Dual-band low-E omni-directional antenna | Dual-band low-E omni-directional antenna | Dual-band low-E omni-directional antenna | Dual-band low-E omni-directional antenna | Dual-band low-E omni-directional antenna |
| Antenna gain | 2.4GHz: 5dBi5GHz: 4.7dBi | 2.4GHz: 5.3dBi5GHz: 7dBi | 2.4GHz: 6dBi5GHz: 6dBi | 2.4GHz: 3.8dBi5GHz: 3.1dBi | 2.4GHz: 3.4dBi5GHz: 3.4dBi |
| Maximum transmit power(Combined power, limited by local laws and regulations) | 2.4GHz: 15dBm5GHz: 22dBm
(Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm5GHz: 21dBm
(Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm5GHz: 24dBm
(Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm5GHz: 23dBm
(Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
2.4GHz: 18dBm5GHz: 20dBm
(Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power | 1dBm | 1dBm | 1dBm | 1dBm | 1dBm |
| Power consumption | <25W | <25W | <15W | <12.95W (without USB) | <12.95W |
| Radio Specifications:Max. number of STA per radio | 256 | 256 | 256 | 256 | 124 |
| Radio Specifications:Max. number of SSIDs per radio | 16 | 16 | 16 | 16 | 16 |
| Operating temperature/storage temperature | Operating Tem: -10 ºC ~ 55 ºC ; 0ºC～45ºC(Recommended)Storage Tem: -40ºC～70ºC | 0ºC～40ºC/-40ºC～70ºC | |||
| Operating humidity/storage humidity | 5% to 95% (non-condensing) | ||||
| PoE | 802.3af/802.3at compatible power supply | ||||
| Operating frequencies | 802.11ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz802.11b/g/n : 2.4GHz-2.483GHz | ||||
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54MbpsDSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
MIMO-OFDM (11n): MSC 0-15 (0-31 for WA560) MIMO-OFDM (11ac): MCS 0-9 |
||||
| Modulation mode | 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
||||
| Safety compliance | IEC 60950-1, EN 60950-1 | ||||
| EMC | EN 301489-1, EN 301489-17, EN 55032, EN 55024, EN 60601-1-2 | ||||
| Radio frequency certification | EN 300 328, EN 301 893 | ||||
| Health | EN 50385 | ||||
