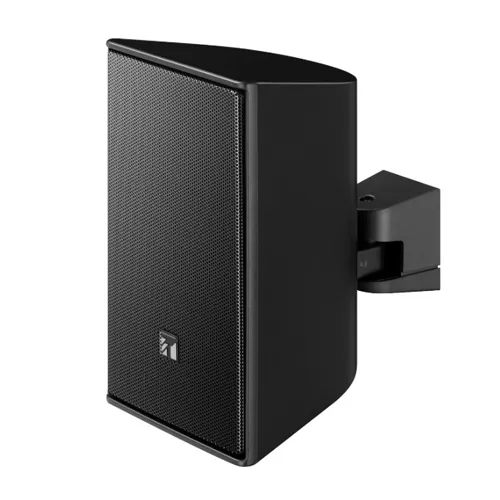

ตู้ลำโพงติดผนัง ยี่ห้อ TOA รุ่น F-05BT

• ดอกเสียงต่ำ 5 นิ้ว
• Rated Input 120 วัตต์, Continuous program
• Rated Impedance 8 Ω
• การตอบสนองความถี่ (-10 dB), 60 Hz – 18 kHz
• Sensitivity 90 dB (1 W, 1 m)
• มุมกระจายเสียงแนวนอน 100 องศา
• มุมกระจายเสียงแนวตั้ง 100 องศา
• น้ำหนัก 2.7 กก.
• Enclosure Bass-reflex type
• Power Handling Capacity (*1) Rated noise power: 60 W (8Ω)
• Continuous program: 120 W (8Ω)
• Rated Input 30 W (100 V line, 70 V line)
• Rated Impedance 8 Ω
• 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 k Ω (3 W), 10 k Ω (1 W)
• 70 V line: 170 Ω (30 W), 330Ω (15 W), 1 k Ω (5 W), 3.3 k Ω (1.5 W), 10 kΩ (0.5 W)
• Sensitivity 90 dB (1 W, 1 m) at installation in 1/2 free sound field
• Frequency Response 60 Hz – 20 kHz, -10 dB at installation in 1/2 free sound field
• Crossover Frequency 4.5 kHz
• Directivity Angle Horizontal: 100°, Vertical: 100°
• Speaker Component Low frequency: 13 cm (5″) PPcone-type
• High frequency: 25 mm (1″) dome tweeter
• Input Terminal Push-in terminal
• Operating Temperature -10 °C to +50 °C
• Installation Environment Indoor installation
• Finish Enclosure: HI PS, black (RAL 9011 equivalent), paint
• Grille: Aluminum, black (RAL 9011 equivalent), paint
• Speaker bracket: Die-cast aluminum, black (RAL 9011 equivalent), paint
• Base bracket: Steel plate, t4, black (RAL 9011 equivalent), paint
• Base bracket cover: HIPS, black (RAL 9011 equivalent)
• Dimensions 162 (W) X 274 (H) X 164 (D) mm
• Weight 2.7 kg
• Accessory Speaker bracket ···1, Base bracket ···1, Base bracket cover … 1, Bracket fixing screw ···1 set
• Option Adapter plate: HY-F05B
• Speaker stand: ST-34B Note: K&M 19780 or K&M 19610 is required.
