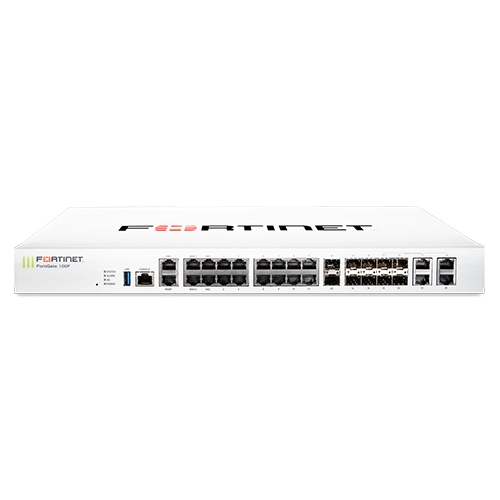

NETWORK FIREWALL & SECURITY ยี่ห้อ FortiGate รุ่น FG-100F-BDL-950-12
| แบรนด์ | ฟอร์ติเน็ต |
|---|---|
| รุ่น | FG-100F-BDL-950-12 |
| Interfaces and Modules | |
| WAN Ports | 2 |
| Internal Ports | 12 |
| Transceivers ports | – |
| Wireless Interface | – |
| Onboard Storage | – |
| System Performance | |
| IPS Throughput | 2.6 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1 Gbps |
| Concurrent Sessions (TCP) | 1.5 Million |
| Form Factor | Rack Mount, 1 RU |
Hardware Specifications
- GE RJ45 Ports 12
- GE RJ45 Management/HA/DMZ Ports 1 / 2 / 1
- GE SFP Slots 4
- 10 GE SFP+ Slots 2
- GE RJ45 WAN Ports 2
- GE RJ45 or SFP Shared Ports * 4
- USB Port 1
- Console Port 1
- Internal Storage —
- Included Transceivers 0
- System Performance — Enterprise Traffic Mix
- IPS Throughput2 2.6 Gbps
- NGFW Throughput2, 4 1.6 Gbps
- Threat Protection Throughput2, 5 1 Gbps
- System Performance
- Firewall Throughput (1518 / 512 / 64 byte UDP packets) 20 / 18 / 10 Gbps
- Firewall Latency (64 byte UDP packets) 5 μs
- Firewall Throughput (Packets Per Second) 15 Mpps
- Concurrent Sessions (TCP) 1.5 Million
- New Sessions/Second (TCP) 56,000
- Firewall Policies 10,000
- IPsec VPN Throughput (512 byte)1 11.5 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels 2,500
- Client-to-Gateway IPsec VPN Tunnels 16,000
- SSL-VPN Throughput 750 Mbps
- Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500
- SSL Inspection Throughput (IPS, avg. HTTPS) 3 1 Gbps
- SSL Inspection CPS (IPS, avg. HTTPS)3 1,800
- SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 135,000
- Application Control Throughput (HTTP 64K) 2 2.2 Gbps
- CAPWAP Throughput (1444 byte, UDP) 15 Gbps
- Virtual Domains (Default / Maximum) 10 / 10
- Maximum Number of FortiSwitches Supported 24
- Maximum Number of FortiAPs (Total / Tunnel Mode) 64 / 32
- Maximum Number of FortiTokens 5,000
- Maximum Number of Registered FortiClients 600
- High Availability Configurations Active / Active, Active / Passive, Clustering
มี ราคา MA ปีที่ 2 ( กรณีซื้อพร้อม HW) เท่านั้นในกรณี Estimate next year MA (1yr) ติดต่อได้ที่ 089-8415456 หรือ 095-4466266
