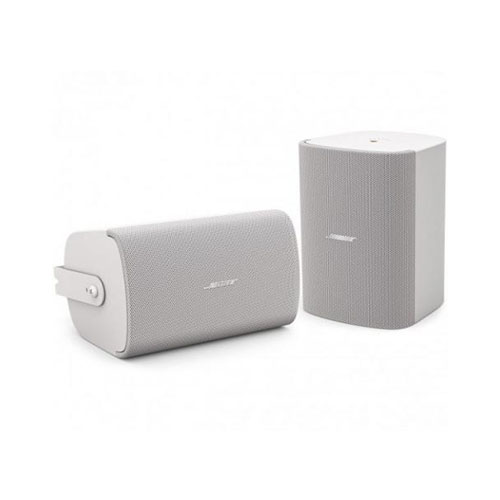

Metal Cabinet Loudspeaker ยี่ห้อ BOSE รุ่น FREESPACE FS4SE PAIR WHT
FEATURES
- Full-range 4.5-inch transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation
- Handles the weather, designed for outdoor wet installation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
- Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
Specifications
| Environmental/Ingress Protection (6) | Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN54-24). Suitable for use outdoors in wet locations. Includes weather-resistant input cover. Optional accessory aluminum grille for harsh environments to prevent red corrosion is available. |
| Safety Agency | Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for Speakers for Fire Alarm and Signaling Systems. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 For EN54-24 specifications, Refer to FS4SE EN 54-24 Certified Ratings document on pro.bose.com |
| Operating Temperature Range | -25 °C to 70 °C (-13 °F to 158 °F) |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. |
| Suspension/Mounting | External U-bracket with bracket screws 7 preset mounting angles: 0°, +15°, +30°, or +45° for wall or ceiling placement Two (2) rear M8 screw inserts for use with optional Ceiling Mount Bracket S2, WBPWR-50 pan-and-tilt bracket (for outdoors), or RMUBRKT1 pan-and-tilt bracket (for indoors) Safety cable can be used with either of two (2) rear M8 inserts when using included U-bracket, or with either of two (2) side M8 inserts, when using optional brackets |
| Dimensions (H × W × D) | 254 × 171 × 174 mm (10.0 × 6.7 × 6.8 in) |
| Dimensions with Bracket (H x W x D) | 273 × 171 × 196 mm (10.7 × 6.7 × 7.7 in) |
| Net Weight, Loudspeaker with Grille and Bracket (Single) | 3.08 kg (6.80 lb) |
| Shipping Weight (Pair) | 8.32 kg (18.35 lb) |
| Included Accessories | Each FS4SE includes one (1) Bose logo for vertical orientation, one (1) U-Bracket and one (1) weather-resistant input cover |
| Optional Accessories | Aluminum Grille kit (2-pack), WBPWR-50 pan-and-tilt bracket (for outdoors), RMUBRKT1 pan-and-tilt bracket (for indoors), Ceiling Mount Bracket S2, Ceramic Terminal and Thermal Fuse Kit (10-pack) |
| PRODUCT CODES 841155-0410 | FREESPACE FS4SE PAIR WHT |
