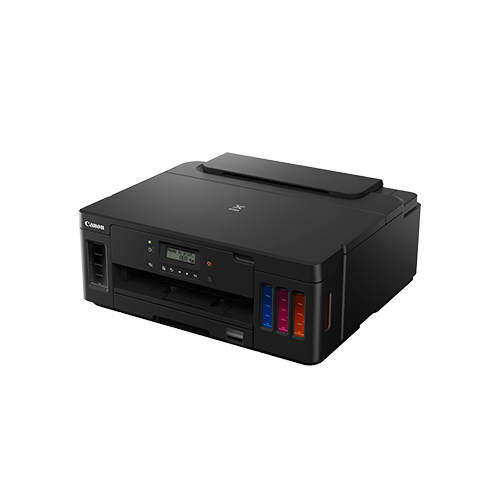

เครื่องพิมพ์ ยี่ห้อ CANON รุ่น G5070
เครื่องปริ้นเตอร์อิงค์เจ็ท Canon G5070
- ให้งานพิมพ์คุณภาพสูง คมชัด ด้วยความละเอียดในการพิมพ์ 4,800 x 1,200 dpi
- ความเร็วในการพิมพ์ขาว-ดำ 13 แผ่นต่อนาที พิมพ์สี 6.8 แผ่นต่อนาที และภาพขนาด 4×6 นิ้ว 37 วินาทีต่อแผ่น รวดเร็วทันใจ
- สะดวกใส่กระดาษได้ 100 แผ่น (ด้านหน้า) และ 250 แผ่น (ด้านหลัง) พิมพ์งานได้นานต่อเนื่อง
- รองรับการเชื่อมต่อ Wired LAN 10/100 BaseY/TX, Wireless LAN IEEE802.11b/g/n พร้อม Direct Connnection, USB 2.0 High-speed
- ใช้งานร่วมกับหมึกพิมพ์แบบขวดแยกสี (GI-70 C/M/Y/K) เพื่อประสิทธิภาพงานพิมพ์ที่สูงสุด
- ขนาดเครื่อง (กว้าง x ลึก x สูง) : 40.3 x 36.9 x 16.6 ซม.
- น้ำหนัก 6.5 กก.
| Print Head / Ink | |
| Type | Permanent (Replaceable) |
| Number of Nozzles | Total 1,792 nozzles |
| Ink Bottles | GI-70 (Pigment Black / Cyan / Magenta / Yellow) |
| Maximum Printing Resolution | 4800 (horizontal)*1 x 1200 (vertical) dpi |
| Print Speed*2
Based on ISO/IEC 24734 |
|
| Document (ESAT/Simplex) | Approx. 13.0 ipm (black) / 6.8 ipm (colour) |
| Document (ESAT/Duplex) | Approx. 2.9 ipm (black) / 2.8 ipm (colour) |
| Document (FPOT Ready/Simplex) | Approx. 9 sec (black) / 14 sec (colour) |
| Photo (4 x 6″) (PP-201/Borderless) | Approx. 45 sec |
| Printable Width | Up to 203.2 mm (8″)
Borderless: Up to 216 mm (8.5″) |
| Printable Area | |
| Borderless Printing*3 | Top/Bottom/Right/Left margin: Each 0 mm |
| Bordered Printing | #10 Envelope/DL Envelope: Top 8 mm / Bottom 12.7 mm / Right 5.6 mm / Left 5.6 mm 127 x 127 mm: 89 x 89 mm / 4 x 4″: LTR / LGL: Other: |
| Bordered Auto 2-Sided Printing | Top / Bottom margin: 5 mm, Left / Right margin: 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm) |
| Support Media | |
| Rear Tray | Plain Paper (64 – 105 g/m²) Photo Paper Pro Platinum (PT-101) Photo Paper Pro Luster (LU-101) Photo Paper Plus Glossy II (PP-201/PP-208) Matte Photo Paper (MP-101) Glossy Photo Paper “Everyday Use” (GP-508) High Resolution Paper (HR-101N) Photo Paper Plus Semi-Gloss (SG-201) Photo Stickers (PS-108/PS-208/PS-808) Removable Photo Stickers (PS-308R) Magnetic Photo Paper (PS-508) Envelope |
| Cassette | Plain Paper (64 – 105 g/m²) |
| Paper Size | |
| Rear Tray | A4, A5, B5, LTR, LGL, 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Envelopes (DL, COM10), Square (5 x 5″, 4 x 4″, 89 x 89 mm), Card Size (91 x 55 mm) [Custom size] |
| Cassette | A4, A5, B5, LTR
[Custom size] |
| Paper Size (Borderless)*4 | A4, LTR, 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Square (5 x 5″, 4 x 4″, 89 x 89 mm), Card Size (91 x 55 mm) |
| Paper Handling (Maximum Number) | |
| Rear Tray | Plain Paper (A4, 64 g/m²) = 100 High Resolution Paper (HR-101N) = 80 Photo Paper: 4 x 6″ = 20 |
| Cassette | Plain Paper (A4, 64 g/m²) = 250 |
| Support Media for Auto 2-sided printing | |
| Type | Plain Paper |
| Size | A4, A5, B5, LTR |
| Paper Weight | |
| Rear Tray | Plain Paper: 64 – 105 g/m² Canon paper: Max paper weight: Approx. 300 g/m² (Photo Paper Pro Platinum PT-101) |
| Cassette | Plain Paper: 64 – 105 g/m² |
| Ink End Sensor | Electrode type and dot count type combined |
| Print Head Alignment | Auto/Manual |
Network
| Protocol | TCP/IP, SNMP |
| Wired LAN | |
| Network Type | IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Data Rate | 10 M/100 Mbps (Auto switchable) |
| Wireless | |
| Network Type | IEEE802.11n / IEEE802.11g / IEEE802.11b |
| Frequency Band | 2.4 GHz |
| Channel*5 | 1 – 13 |
| Range | Indoor 50 m (Depends on the transmission speed and conditions) |
| Security | WEP64/128 bit WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
| Direct Connection (Wireless LAN) | Available |
Printing Solutions
| AirPrint | Available |
| Windows 10 Mobile | Available |
| Mopria | Available |
| Google Cloud Print for Android |
Available |
| Canon Print Service for Android |
Available |
| PIXMA Cloud Link (from smartphone/tablet) |
Available |
| Message in Print (for iOS/for Android) |
Available |
| Easy Photo-Print Editor (for iOS/for Android) |
Available |
| Canon PRINT Inkjet/SELPHY (for iOS/for Android) |
Available |
System Requirements*6
| Windows 10 / 8.1 / 7 SP1 (Operation can only be guaranteed on a PC with a pre-installed Windows 7 or later) OS X 10.10.5 ~ OS X 10.11, macOS 10.12 ~ macOS 10.14 |
General Specifications
| Operation Panel | |
| Display | 2-Line LCD |
| Language | 32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese |
| Interface | Hi-Speed USB 2.0 |
| PictBridge (Wireless/Wired LAN) | Available |
| Operating Environment*7 | |
| Temperature | 5 – 35°C |
| Humidity | 10 – 90% RH (no dew condensation) |
| Recommended Environment*8 | |
| Temperature | 15 – 30°C |
| Humidity | 10 – 80% RH (no dew condensation) |
| Storage Environment | |
| Temperature | 0 – 40°C |
| Humidity | 5 – 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) | |
| Plain Paper (A4, B/W)*9 | Approx. 50.5 dB(A) |
| Power | AC 100 – 240 V, 50/60 Hz |
| Power Consumption | |
| OFF | Approx. 0.3 W |
| Standby (scanning lamp is off) USB connection to PC |
Approx. 0.8 W |
| Standby (all ports connected, scanning lamp is off) [EU only – for ErP Lot 26 regulation] |
Approx. 1.6 W |
| Time to enter Standby mode [EU only – for ErP Lot 26 regulation] |
Approx. 11 min 10 sec |
| Printing*10 USB connection to PC |
Approx. 21 W |
| Environment | |
| Regulation | RoHS (EU, China), WEEE (EU) |
| Duty Cycle | Up to 5,000 pages/month |
| Dimension (WxDxH) | |
| Factory Configuration | Approx. 403 x 369 x 166 mm |
| Output/ADF trays extended | Approx. 403 x 695 x 356 mm |
| Weight | Approx. 6.5 kg |
Page Yield
| Plain Paper (A4 pages) (ISO/IEC 24712 test file)*11 |
Standard: GI-70 PGBK: 6,000 GI-70 C/M/Y: 7,700 Economy*12: |
| Photo Paper (PP-201, 4 x 6″) (ISO/IEC 29103 test file)*11 |
Standard: GI-70 PGBK: NA GI-70 C/M/Y: 2,200 |
