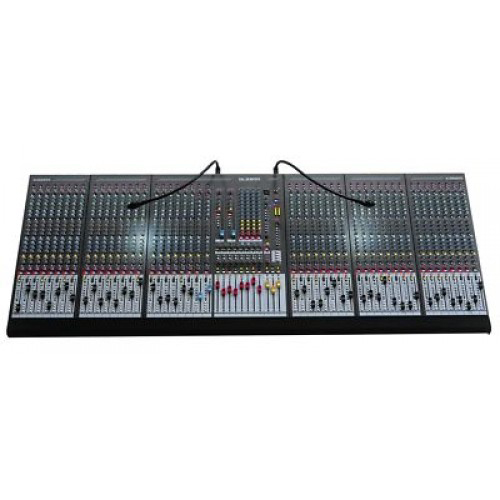

มิกเซอร์ ยี่ห้อ Allen & Heath รุ่น GL2800-832X

Designed for intuitive ease of use with its no-nonsense analog technology, this 8-bus, 32- channel console gives you everything you need for any live sound application. Its new extended headroom mic preamp (with a whopping 74 dB range) will handle every audio curveball to come your way, and its low-noise mix amp and responsive 4 band EQ practically guarantee a “can’t miss” sonic performance. Besides its awesome FOH capabilities, the GL2800-832 also has plenty of mojo for customized monitor mixes.

Get the GL2800-832 and join the big leagues. Note: photo shown with gooseneck lamps not included.

Features:

• LR and M mix buses
• 8 Audio groups with pan and routing to LR and M
• 10 Auxes including a dedicated stereo send
• 2 multifunction stereo channels each with mic and stereo line inputs
• 2 dual stereo provide an extra 4 summed or independent stereo returns
• Fully featured 12×4 Matrix
• Proper dual functionality for FOH/Monitor mixing
• Recording capable with channel direct outputs
• M can be used for LR mono sum, engineer’s wedge, or center/sub mix
• Matrix external inputs with level trims and common input capability
• Stereo channel mic inputs can cross patch into matrix for ambience feed
• Responsive 4 band, 2 sweep EQ
• 100Hz channel high pass filters
• Individual phantom power and polarity switching
• Wide angle channel and master meters
• Dedicated stereo monitor meters
• Per channel pre/post fader aux switching for full flexibility
• Recessed pre/post-EQ aux switching per channel
• Internal jumper plugs for aux, direct out and other options
• Mutes on all fader masters
• 100mm dust protected faders
• Assignable talkback to all outputs
• 1kHz oscillator/pink noise generator with external output
• 2-track monitoring and replay to LR
• 3 headphones/earpiece sockets and local monitor outputs
• Electronically balanced XLR outputs with +26dBu drive capability
• Preamp 74dB range with +34dBu input capability for mic or line
• Ultra low noise mix head amp design
• Uses external linear power supply
• Built-in combiner for redundant backup supply
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Solid copper bus bar grounding
• Sys-Link V2 console linking option
• 4-pin lamp sockets
• Dimensions (W x D x H): 46.1″ x 25.6″ x 6.7″
• Weight: 77 lbs
