GS1100-10HP

Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

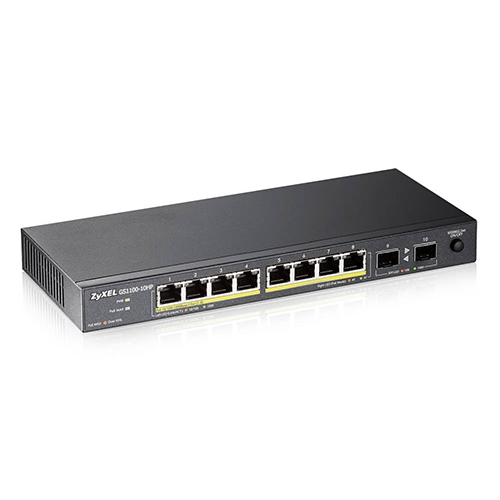

8-port GbE Unmanaged PoE Switch with GbE Uplink ยี่ห้อ ZYXEL รุ่น GS1100-10HP

Standard Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.3ab 1000BASE-T Ethernet
IEEE 802.3az EEE support
IEEE 802.3x flow control
IEEE 802.3z 1000BASE-X
IEEE 802.1p CoS
IEEE 802.3af PoE (GS1100-10HP)
IEEE 802.3at PoE+ (GS1100-10HP)

Certifications Safety

Safety
- LVD
- BSMI
EMC (GS1100-10HP: Class B, GS1100-16/24/24E: Class A)
- CE
- FCC
- RCM
- ICES-003
- BSMI
RoHS
REACH

Models	GS1100-10HP	GS1100-16	GS1100-24E	GS1100-24
Description
Product name	8-port GbE Unmanaged PoE Switch with GbE Uplink	16-port GbE Unmanaged Switch	24-port GbE Unmanaged Switch	24-port GbE Unmanaged Switch with GbE Uplink
Switch class	Unmanaged	Unmanaged	Unmanaged	Unmanaged
Port Density
Total port count	10	16	24	26
100/1000 Mbps	8	16	24	24
Gigabit SFP	2	–	–	2
PoE
802.3at PoE ports	8	–	–	–
Total PoE budget (watts)	130	–	–	–
Performance
Switching capacity (Gbps)	20	32	48	52
Forwarding rate (Mpps)	14.88	23.8	35.7	38.7
Packet buffer (byte)	256 K	525 K	525 K	525 K
MAC address table	8 K	8 K	8 K	8 K
Jumbo frame	9 K	9 K	10 K	10 K
Auto MDI/MDI-X	Yes	Yes	Yes	Yes
802.1p CoS	Yes	Yes	Yes	Yes
VLAN packet pass-through	Yes	Yes	Yes	Yes
Power
Input voltage	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz
Power supply	External	Internal	Internal	Internal
Max. power consumption (watt)	156.1	10	13	14.5
Physical Specifications
Dimensions (WxDxH)(mm/in.)	250 x 104 x 27/9.84 x 4.10 x 1.06	215 x 133 x 42/8.46 x 5.24 x 1.65	267 x 162 x 42/10.51 x 6.38 x 1.65	441 x 131 x 44/17.36 x 5.16 x 1.73
Weight (kg/lb.)	0.73/1.6	0.9/1.98	1.5/3.3	1.8/3.96
Included accessories	Power adapter Power cord Wall-mount kit	Power cord Wall-mount kit Rack mounting kit*	Power cord Wall-mount kit Rack mounting kit*	Power cord Rack mounting kit*
Green Features
Fanless	Yes	Yes	Yes	Yes
Environmental Specifications
Operating Temperature	0°C to 50°C / 32°F to 122°F	0°C to 40°C / 32°F to 104°F	0°C to 40°C / 32°F to 104°F	0°C to 40°C / 32°F to 104°F
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-40°C to 70°C/-40°F to 158°F
Storage Humidity	10% to 95% (non-condensing)
MTBF (hr)	1,000,070	1,156,942	366,919	388,378
Heat dissipation (BTU/hr)	89	32.86	43.53	51.25
