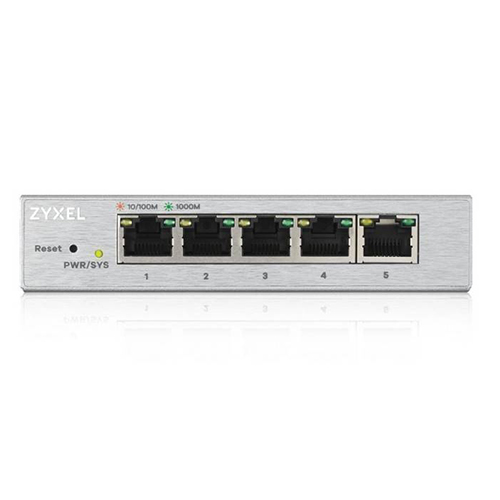

5-Port Web Managed Gigabit Switch ยี่ห้อ ZYXEL รุ่น GS1200-5
This switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business.
Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.
VLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users.
QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow.
GS1200-5/8 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability.
|
Models
|
GS1200-5
|
GS1200-8
|
GS1200-5HP v2
|
GS1200-8HP v2
|
|---|---|---|---|---|
| Description | 5-Port Web Managed Gigabit Switch | 8-Port Web Managed Gigabit Switch | 5-Port Web Managed PoE Gigabit Switch | 8-Port Web Managed PoE Gigabit Switch |
| Case | Metal | Metal | Metal | Metal |
| Key Features | ||||
| Auto MDI/MDI-X | Yes | Yes | Yes | Yes |
| Store and Forward | Yes | Yes | Yes | Yes |
| Full Duplex Capability | Yes | Yes | Yes | Yes |
| Flow Control | Yes | Yes | Yes | Yes |
| Hardware | ||||
| 10/100 Mbps Ethernet Ports | – | – | – | – |
| 10/100/1000 Mbps Ethernet Ports | 5 | 8 | 5 | 8 |
| 10/100/1000 Mbps Ethernet PoE+ Ports | – | – | 4 | 4 |
| Performance | ||||
| Switching Capacity | 10 Gbps | 16 Gbps | 10 Gbps | 16 Gbps |
| MAC Address | 2K | 4K | 2K | 4K |
| Memory Buffer | 128 KB | 192 KB | 128 KB | 192 KB |
| Jumbo Frames | Up to 9 KB | Up to 9 KB | Up to 9 KB | Up to 9 KB |
| System Features | ||||
| Web GUI | Yes | Yes | Yes | Yes |
| 802.3x Flow Control | Yes | Yes | Yes | Yes |
| DHCP Client | Yes | Yes | Yes | Yes |
| 802.1Q VLAN | Yes | Yes | Yes | Yes |
| WRR Priority QoS | Yes | Yes | Yes | Yes |
| Port-based QoS | Yes | Yes | Yes | Yes |
| 802.1p CoS | Yes | Yes | Yes | Yes |
| Broadcast Storm Control | Yes | Yes | Yes | Yes |
| Loop Detection /Prevention | Yes | Yes | Yes | Yes |
| IGMP Snooping v1/v2/and v3 Compatitble | Yes | Yes | Yes | Yes |
| Link Aggregation | Yes | Yes | Yes | Yes |
| Port Mirroring | Yes | Yes | Yes | Yes |
| Green Features | ||||
| Fanless | Yes | Yes | Yes | Yes |
| Power Saving by Detecting Link Status & Cable Length | Yes | Yes | Yes | Yes |
| Power | ||||
| Input voltage | 5V DC/1A | 5V DC/1A | 55 V/1.3 A | 55 V/1.3 A |
| Power supply | External | External | External | External |
| Maximum power consumption (watt) | 2.67 | 4.37 | 72 | 72 |
| PoE power budget (watt) | – | – | 60 | 60 |
| Physical Specifications | ||||
| Item dimensions (WxDxH) | 121x 75 x 26mm (4.8” x 3.0” x 1.0”) |
155x 85 x 26 mm (6.1” x 3.0” x 1.0”) |
193 x 84 x 26 mm (7.6″ x 3.3″ x 1.0″ ) |
240 x 105 x 26 mm (9.5″ x 4.1″ x 1.0″) |
| Item weight | 233g (0.51 lb.) | 325g (0.72 lb.) | 392g (0.86 lb.) | 584g (1.29 lb.) |
| Packing dimensions (WxDxH) | 127 x 82 x 95 mm (5.0” x 3.2” x 3.7”) |
161 x 90 x 95 mm (6.3” x 3.5” x3.7”) |
210 x 132 x 78 mm (8.3″ x 5.2″ x 3.1″) |
256 x 132 x 78 mm (10.1″ x 5.2″ x 3.1″) |
| Packing weight | 388g (0.86 lb.) | 497g (1.10 lb.) | 950g (2.10 lb.) | 1153g (2.54lb.) |
| Environmental Specifications | ||||
| Operating | Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
