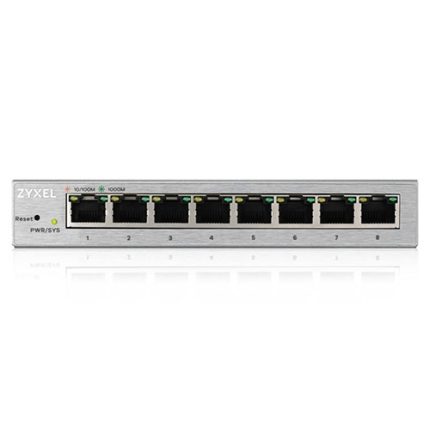

8-Port Web Managed PoE Gigabit Switch ยี่ห้อ ZYXEL รุ่น GS1200-8HP v2
The GS1200 series of PoE+ switches features true web management, QoS and support for 802.3af and 802.3at PoE+ plus a user-friendly set-up interface. With essential power and value features built-in, it’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points.
The GS1200 series supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.
|
Models
|
GS1200-5HP v2
|
GS1200-8HP v2
|
GS1200-5
|
GS1200-8
|
|---|---|---|---|---|
| Description | 5-Port Web Managed PoE Gigabit Switch | 8-Port Web Managed PoE Gigabit Switch | 5-Port Web Managed Gigabit Switch | 8-Port Web Managed Gigabit Switch |
| Case | Metal | Metal | Metal | Metal |
| Key Features | ||||
| Hardware | ||||
| 10/100 Mbps Ethernet Ports | – | – | – | – |
| 10/100/1000 Mbps Ethernet Ports | 5 | 8 | 5 | 8 |
| 10/100/1000 Mbps Ethernet PoE+ Ports | 4 | 4 | – | – |
| Performance | ||||
| Switching Capacity | 10 Gbps | 16 Gbps | 10 Gbps | 16 Gbps |
| MAC Address | 2K | 4K | 2K | 4K |
| Memory Buffer | 128 KB | 192 KB | 128 KB | 192 KB |
| Jumbo Frames | Up to 9 KB | Up to 9 KB | Up to 9 KB | Up to 9 KB |
| System Features | ||||
| Web GUI | Yes | Yes | Yes | Yes |
| 802.3x Flow Control | Yes | Yes | Yes | Yes |
| DHCP Client | Yes | Yes | Yes | Yes |
| 802.1Q VLAN | Yes | Yes | Yes | Yes |
| WRR Priority QoS | Yes | Yes | Yes | Yes |
| Port-based QoS | Yes | Yes | Yes | Yes |
| 802.1p CoS | Yes | Yes | Yes | Yes |
| Broadcast Storm Control | Yes | Yes | Yes | Yes |
| Loop Detection /Prevention | Yes | Yes | Yes | Yes |
| IGMP Snooping v1/v2/and v3 Compatitble | Yes | Yes | Yes | Yes |
| Link Aggregation | Yes | Yes | Yes | Yes |
| Port Mirroring | Yes | Yes | Yes | Yes |
| Green Features | ||||
| Fanless | Yes | Yes | Yes | Yes |
| Power Saving by Detecting Link Status & Cable Length | Yes | Yes | Yes | Yes |
| Power | ||||
| Input voltage | 55 V/1.3 A | 55 V/1.3 A | 5V DC/1A | 5V DC/1A |
| Power supply | External | External | External | External |
| Maximum power consumption (watt) | 72 | 72 | 2.67 | 4.37 |
| PoE power budget (watt) | 60 | 60 | – | – |
| Physical Specifications | ||||
| Item dimensions (WxDxH) | 193 x 84 x 26 mm (7.6″ x 3.3″ x 1.0″ ) |
240 x 105 x 26 mm (9.5″ x 4.1″ x 1.0″) |
121x 75 x 26mm (4.8” x 3.0” x 1.0”) |
155x 85 x 26 mm (6.1” x 3.0” x 1.0”) |
| Item weight | 392g (0.86 lb.) | 584g (1.29 lb.) | 233g (0.51 lb.) | 325g (0.72 lb.) |
| Packing dimensions (WxDxH) | 210 x 132 x 78 mm (8.3″ x 5.2″ x 3.1″) |
256 x 132 x 78 mm (10.1″ x 5.2″ x 3.1″) |
127 x 82 x 95 mm (5.0” x 3.2” x 3.7”) |
161 x 90 x 95 mm (6.3” x 3.5” x3.7”) |
| Packing weight | 950g (2.10 lb.) | 1153g (2.54lb.) | 388g (0.86 lb.) | 497g (1.10 lb.) |
| Environmental Specifications | ||||
| Operating | Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
