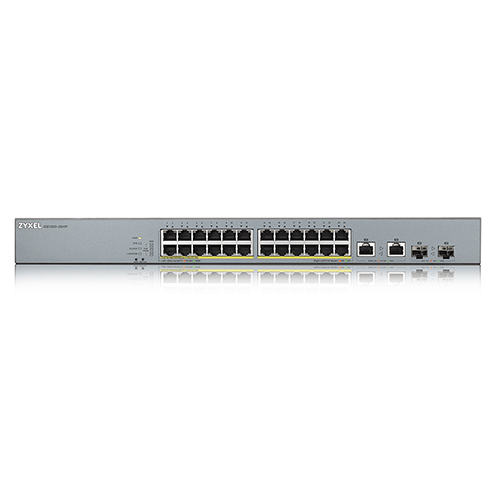

24-port GbE Smart Managed PoE Switch with GbE Uplink ยี่ห้อ ZYXEL รุ่น GS1350-26HP
The GS1350 Series offers a smart, intuitive web UI experience, specifically for your surveillance applications. Monitor your cameras and PoE status at a glance and setup your surveillance network with absolute ease.
The GS1350 Series joins the Zyxel NebulaFlex Pro family, which allows you to easily switch between standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled with just a few simple clicks. Both management options have dedicated surveillance features to help you manage your surveillance network with ease.
|
Models
|
GS1350-6HP
|
GS1350-12HP
|
GS1350-18HP
|
GS1350-26HP
|
|---|---|---|---|---|
| Model | ||||
| Product name | 5-port GbE Smart Managed PoE Switch with GbE Uplink | 8-port GbE Smart Managed PoE Switch with GbE Uplink | 16-port GbE Smart Managed PoE Switch with GbE Uplink | 24-port GbE Smart Managed PoE Switch with GbE Uplink |
| Switch class | Smart Managed | Smart Managed | Smart Managed | Smart Managed |
| Port Density | ||||
| Total port count | 6 | 12 | 18 | 26 |
| 100/1000 Mbps | 5 | 10 | 16 | 24 |
| Gigabit SFP | 1 | 2 | – | – |
| Gigabit combo (RJ-45/SFP) | – | – | 2 | 2 |
| Configurable extended range ports | 5 | 8 | 16 | 24 |
| PoE | ||||
| PoE ports | 5 | 8 | 16 | 24 |
| Total PoE budget (watt) | 60 | 130 | 250 | 375 |
| PoE Standard | 802.3af/at 802.3bt (port 1-2) |
802.3af/at | 802.3af/at | 802.3af/at |
| Performance | ||||
| Switching capacity (Gbps) | 12 | 24 | 36 | 52 |
| Forwarding rate (Mpps) | 8.9 | 17.8 | 26.7 | 38.7 |
| Packet buffer (byte) | 525 K | 525 K | 525 K | 525 K |
| MAC address table | 8 K | 8 K | 8 K | 8 K |
| Power | ||||
| Input | 52 V – 57 V DC | 100 – 240 V AC, 50/60 Hz | 100 – 240 V AC, 50/60 Hz | 100 – 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 72 | 160.3 | 300.9 | 448.9 |
| Physical Specifications | ||||
| Dimensions (WxDxH)(mm/in.) | 193 x 84 x 26 / 7.6 x 3.31 x1.02 |
267 x 162 x 44 / 10.51x 6.38 x1.73 |
330 x 230 x 44 / 12.99 x 9.06 x1.73 |
441 x 270 x 44 / 17.36 x10.63 x 1.73 |
| Weight (kg/lb.) | 0.41/0.9 | 1.63/3.59 | 2.42/5.34 | 3.58/7.89 |
| Included accessories |
|
|
|
|
| ESD/Surge Protections | ||||
| Ethernet port surge protection | 4 KV | 4 KV | 4 KV | 4 KV |
| Power supply surge protection: Line-GND | 4 KV | 4 KV | 4 KV | 4 KV |
| Power supply surge protection: Line-Line | 2 KV | 2 KV | 2 KV | 2 KV |
| Ethernet port ESD protection (air/contact) | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV |
| Environmental Specifications | ||||
| Operating | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
| MTBF (hr) | 2,021,885.87 | 1,065,025.45 | 1,699,692.18 | 888,495 |
| Heat dissipation (BTU/hr) | 245.52 | 546.62 | 1,026.07 | 1,530.75 |
| Acoustic noise @ 25°C (dBA) | 0 (Fanless) | 27.3 | 39 | 40.1 |
