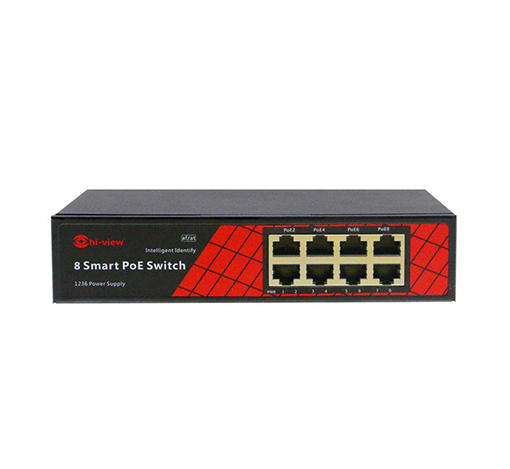

POE Switch 8 Port ยี่ห้อ Hi – View รุ่น HG-SW8 8P8G
- Using CAT.5 network patch cords support power for the wireless AP and IP camera
- Networking standard: IEEE802.3aflat/bt
- POE power light blinks to determine the power status of the receiving end, and each blink is 2.7 watts.
- PoE Watchdog Al Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
- Upload port automatic flip (Auto MDI / MDIX)
- Network performance: Store-and-forward
- Intelligent power distribution and secure power supply system
- The port power is 60 watts, it is convenient for high-power device
- Zero configuration feature power supply is automatically supplied to the adaptive equipment
- Professional thunder design, Overtemperature protection , short circuit protection ,high reliability, high stability
- Nature cooling, small, compact, mute, all the designs are convenient for you to put
- Support: port no-load saving power
SPECIFICATION
| Model | HG-SW8 8P8G |
| Network Interface | POE (1~8) |
| UP-LINK (PoE1~ 8) | |
| Transmission Rate | 200Mbps Full Duplex; 10 or 100Mbps Half Duplex |
| Network Interface: 10BASE -T or 100BASE-TX RJ45 port of Ethernet | |
| Performance & Specification | Bandwidth: 1.6Gbps |
| Network Latency (10 to 100Mbps): ~ 16us | |
| (use the 64byte package size) | |
| MAC address table: 8K | |
| The Frame Filter & Transmission Rate: 14800pps | |
| the most for 10M port, 148800pps the most for | |
| 100M port, 1488000pps the most for 1000M por | |
| Networking Standard | IEEE 802.3i 10BASE-T |
| IEEE 802.3u 100BASE -TX/IEEE802.3ab 1000Base-T | |
| IEEE 802.3xFlowControl | |
| IEEE 802.3 af/at/bt Power over Ethernet | |
| POE Core Of Power Cable | Default: 1/2(+), 3/6(-); 1245(+),3678(-); |
| PWR Light | PWR Light no extinguish |
| Power Support | Power input: DC 5~52V 60W, |
| Power output: PoE1 ~4Port: 1/2(+52V),3/6(GND) | |
| POE 7~8 Port:1245(+53V),3678(GND) | |
| compatible1/2(+52V),3/6(GND) | |
| Physical Specifications | Size(L*W*H) 187mm*139mm*43mm |
| Working Environment | Operating Temperature: -10 C ~55C ( -14-~1319F) |
| Storage Temperature: -40 C ~70C ( -104~~158′) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Electromagnetic Compatibility | CEmark |
| FCCPart15, Class B | |
| VCCI ClassBEN55022 (CISPR 22) | |
| C-Tick | |
| Package Content | AC Power Cable, Installtion Manual |
