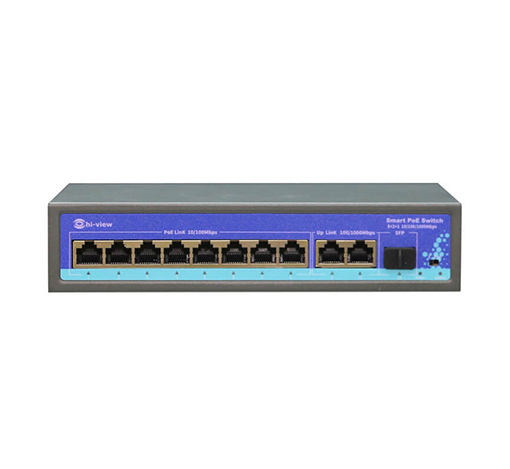

POE Switch 10 Port ยี่ห้อ Hi – View รุ่น HH-SW10 2P8 S1
- 8*10/100mbps PoE port; 2*100/1000mbps Uplink port
- 1*1000mbps SFP
- 250m Distance
- Vian Support
- REALTEK Chipset
- Support IEEE802.3AF/AT
- Whole Power: 120W(52V 2.3A)
- All port supported by MDUMDIX auto fip and self negotiation
- Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
- Support IEEE802.3x flow control for Full-duplex mode and backpressure tor Half-duplex mode.
- Each port max. Power supply reached 30W.
Specification
| Model | HH-SW10 2P8 S1 |
| Product | 8+2+1 Port 250m POE Switch (Built-in) |
| POE Port | 1 to 8 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W |
| IEEE802.3af/at | |
| Power Pin | Both 1/2+, 3/6- and 4/5+7/8- |
| Whole Power | ≤S120W (52V 2.3A) |
| POE Protocol | IEEE 802.3at/IEEE 802.3at |
| POE Type | End-span |
| Power Distance | ≤S250m |
| Network Standard | IEEE 802.3 |
| IEEE802.3u | |
| 802.3x | |
| 802.3at/at | |
| Network Medium | 10/100BASE-TX: 5 class and above non shielded twisted pair |
| Data Distance | <250m |
| Swich Capability | 12Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 100BASE-T: 148800pps / port |
| 1000BASE-T:1488000pps / port | |
| MAC address | MAC Address table 2K |
| Port Function | Power priority mechanism, fast and forward, |
| MAC automatic learning and aging | |
| IEEE802.3X Full-duplex and mode and | |
| backpressure for Half-duplex mode | |
| LED Indicator | LINK/ACT.100Mbps; POE Status Indicator; |
| Power indicator; Extender | |
| Working Environment | Working temperature: -10 ํ– 55C ํ |
| Weight | 1.2kg |
| Size | 20mm*118mm*44mm (L*W*H) |
