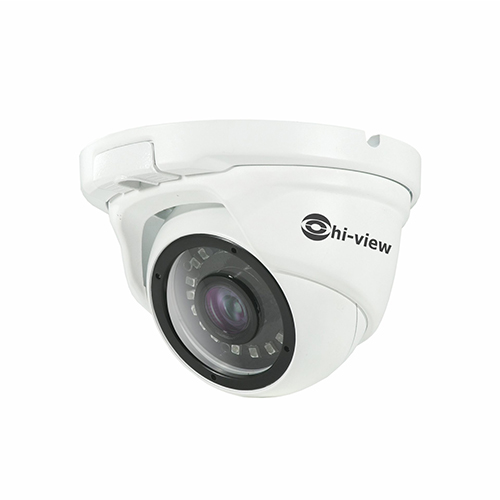

กล้องวงจรปิด Dome IP Camera ยี่ห้อ Hi-View รุ่น HP-55D30PE
- 1/2.7″ SC4239 CMOS sensor , CPU Hisilicon Hi3516EV200
- Resolution 3MP/2MP/720
- H.265/H.265X
- Fixed lens 3.2mm/M12
- IR SMD 18 pcs/IR Distance 10-30M
- Audio Input x1 (RCA, external)
- Metal bullet case, IP66
- Power supply 12VDC/PoE(af)
| Model | HP-55D30STPE |
| Image Sensor | 1/2.7″ SC4239 CMOS progressive scan |
| Recommend Recording Pixels | (H)x1944(V), Approx. 5.04M Pixels |
| Pixels | 5MP |
| Min. IIIumination | Color 0.0001Lux@F1.2 B/W 0.0001Lux@F1.2 |
| Shutter Speed | 1/50(1/60s) to 1/10,000s |
| Siow Shutter Mode | Low, medium, high |
| Day / Night Mode | Star IR, Full Color, B/W, Smart Alert |
| White Balance | Supported |
| BLC | Supported |
| AGC | Supported |
| Image Brightness Adjust | Supported |
| Image Contrast Adjust | Supported |
| Image Sharpness Adjust | Supported |
| Image Saturation Adjust | Supported |
| DNR | Supported |
| DWDR | Supported |
| Defoging | Supported |
| Image Flip | Supported |
| Image Mirror | Supported |
| Anti Flicker | Supported |
| Region Cover | Supported |
| Lens | |
| Mount Type | M12 |
| Auto Iris | Auto Electric Iris |
| Focal Length | Fixed lens 3.2 mm |
| Focus Cuntrol | Manual |
| Infrared | |
| IR Type | SMD 18 Pcs |
| IR Distance | 10-30M |
| IR-CUT | Support IR-CUT filter |
| IR Intensity | Smart IR (Auto) |
| IR-Swap | Supported |
| Video | |
| Video Format | PAL/NTSC |
| Video Encode | H.265 / H.265X |
| Smart Encode | Supported |
| Video Stream | Dual Stream |
| Image Resolution | Main: 3MP@fps (PAL). 2 MP@25fps (PAL)720P@25fps (PAL)
Sub: D1 @25fps (PAL) CIF@25fps (PAL) |
| Bitrate Control | VBR /CBR |
| Privacy Masking | Supported |
| OSD | Supported |
| Audio | |
| Audio Encord | G.711A |
| Network Protocols | TCP/IPv4, DHCP, HTTP, DNS, DDNS, NTP, UPNP, ONVIF, FTP, SMTP, RTSP |
| DDNS Provider | Hi-View DDNS, CN99, Dyndns, Oray, NO-IP |
| User Interface | IE, App, VMS |
| Appplication Programming | ONVIF |
| Account Management | Supported |
| Alarm / Seciruty / Maintain | |
| Motion Detection | Supported |
| Human Detection | Supported |
| Video Blind Alarm | Supported |
| IP Filtering | Supported |
| Image Storgea | Supported E-mail /FTP (Intervel time setting) |
| Reboot Maintain | Supported |
| IMport& Export Config. | Supported |
| Log Serach | Supported |
| Upgrading Software | Supported |
| Alarm Trigger | Sen email, FTP, write log, record |
| Interfaces | |
| Ethernet | x1 (10/100M, RJ45 water-proof interface) |
| Audio Input | x1 (RCA) |
| Power Supply | x1 (DC jack female) |
| Environmenttal | |
| Operrating Temperature | 0℃⁓+40℃ |
| Storage Temperature | -20℃⁓+60℃ |
| Operrating Humidity | 90% RH |
| Protection Level | IP66 |
| Surge Protection Level | 6KV |
| Electrical | |
| Power | 12V DC +- 10% /POE |
| POE Standard | IEEE 802.3af(915.40W) |
| Power Consumption | IR OFF: 1.7W / IR ON: 4.7W |
| Mechanical | |
| Case Matirial | Metal bullet |
| Weight | 0.30Kg. |
| Dimensions | 181x63x63mm. |
