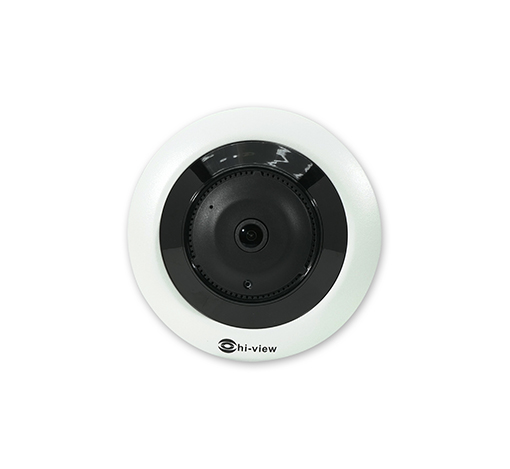

กล้องวงจรปิด IP DOME ยี่ห้อ Hi – View รุ่น HP-78VR50PE
- IP Camera Fisheye 5.0MP
- H.265 / H.264
- Lens 1.1mm/F2.0
- IR SMD 3pcs
- IR distance 5M
- TF-cardx1, Micx1, speakerx1
- Alarm inputx1, Alarm outputx1
- BNC outputx1, RJ45x1
- P2P, IP64, IE, App hiviewHD, CMS. ONVIF
- DC12V/POE
SPECIFICATION
| Model | HP-78VR50PE |
| Image Sensor | 1/2.9″ Progessive CMOS |
| Main. lllumination | Color 0.1lux @ F1.2(AGC ON) ; B/W 0 Lux @ IR ON |
| Lens | |
| Lens | 1.1mm |
| Angle of View | 360 ํ |
| F No. | F 2.0 +-5% |
| LED | |
| Day & Night | IR cut filter with auto switch |
| IR LED | 3pcs (SMD) |
| IR Range | Up to 5m |
| Display | |
| Camera OSD | Support, show name, show time |
| Flicker Control | 50Hz, 60Hz |
| OSD Transparency | Support (1-128) |
| Privacy Zone | Support max. 4 areas |
| ROI | Support max. 8 regions |
| Mount Type | Ceiling, wall, desktop, tilt |
| Display Mode | VR, cylinder, 2PTZ, panorama 180, panorama 360, |
| panorama 360 + 1PTZ, panorama 360 + 9PTZ, | |
| panorama 360 + 6PTZ, panorama 360 + 8PTZ, | |
| fisheye+ 3PTZ, fisheye+ 8PTZ | |
| Image Control | |
| Image Adjust | Hue, bright, contrast, saturation, sharpness |
| IR-CUT Mode | Auto, Color mode, B/W mode, schedule mode |
| IR-CUT dealy Setting | Support (1-36) |
| IR LED Control | Auto, on, off |
| Lens Flip | on, off |
| Angle Flip | on, off |
| corridor Mode | on, off |
| Angle Ratation | 0, 180 |
| Back Light | Support BLC, area adjustable (top, left, down, right, center) |
| 3D Noise Reduction | Auto, manual, disable |
| DWDR | Support |
| AGC | Support |
| White Balance | Auto, manual, indoor |
| Shutter | Auto, manual (1/5-1/20,000) |
| defog | Support adjustable level (1-255) |
| Record | |
| Stream mode | Mainstream, substream |
| Pre-Record | Support |
| Netbreak | Support |
| Schedule | Support (normal, motion, lom sound detection, no record mode schedule) |
| Network | |
| Network Type | DHCP, PPPoE, static |
| Network Protocol | DHCP, PPPoE, HTTP, DNS, DDNS, UPNP, P2P, SMTP, |
| RTSP, FTP, SNMP, HTTPS, NTP, DST | |
| Video Streaming | Triple stream (main, sub, mobile) |
| Stream Resolution | Mainstream 2160×2160, 1520×1520, 1080×1080, 720×720 |
| Substream 720×720, 480×480, x240x240 | |
| Mobilestream 480×480, 240×240 | |
| Record FPS | Mainstream 2160×2160@15fps, 1520×1520@25fps, |
| 1080×1080@25fps, 720×720@25fps | |
| Substream 720×720@15fps, 480×480@15fps, 240×240@15fps | |
| Mobilestream 480×480@15fps, 240×240@15fps | |
| Bitrate | Mainstream 256-16384kbps |
| Substream 512-4096kbps | |
| Mobilestream 8-1536kbps | |
| Video Compression | H.265, H.264 |
| Main profile | |
| CBR / VBR | |
| Model | HP-78VR50PE |
| Audio Record | Support |
| Email Alarm | Support max. receivers 3 account |
| DDNS | Support Hiview DDNS, NO-IP, DYNDNS, DDNS3322 |
| IP Filter | Support white list and black list |
| ONVIF | Support ONVIF Ver 2.6 |
| Alarm | |
| Motion Detection | Support |
| Motion Triggering Mode | Alarm out, record, post-record, semd email, send to cloud |
| Alarm Out | Support (NOO / NC) |
| Alarm Out Triggering | Send email, alarm out, send to cloud, record, post-record |
| Sound Detection | Support |
| Sound Detection Triggering | Send to email |
| Device | |
| HDD | Support TF-card, overwrite mode, support record time info |
| Audio | Support mic built-in, adjustable volume |
| Audio Compression | G711A, G711U, ADPCM, G726 16k, G726 24k, G726 32k, G726 40k |
| Log | Support serach, export file (excel format) |
| Cloud Storage | Support Dropbox |
| System | |
| System Time | Support NTP time setting |
| Users | Support max. 7 users account, Support users permission |
| (parameter, live, playback, RTSP) | |
| User Interface | IE, mobile app (HiviewHD), CMS |
| Info | Support system information |
| Cloud P2P | Support QRCODE |
| Advanced | |
| Firmware Update | Support |
| Load Defult Setting | Support |
| Maintain | Support auto reboot (day, week, month) |
| Playblack | |
| Playback Mode | Support IE, Mobile App, CMS |
| Serach Mode | Time, Date, Event type |
| Playback View Mode | VR, cylinder, 2PTZ, 4PTZ, panorama 180, panorama 360, |
| panorama 360 + 1PTZ, panorama 360 + 3PTZ, | |
| panorama 360 + 6PTZ, panorama 360 + 8TPZ, | |
| fisheye+ 3PTZ, fisheye+ 8PTZ | |
| Playback Mount Type Mode | Ceiling, wall, desktop, tilt |
| Backup | |
| Video Format | MP4, AVI, RF |
| Capture Format | JPG, PNG, BMP |
| Hardware Interface | |
| Lens | x11.1mm |
| IR LED SMD | x3 |
| Mic | x1 Built-in |
| Speaker | x1 Built-in |
| TF-Card | x1 |
| Reset Button | x1 |
| BNC output | x1 |
| Alarm input | x1 |
| Alarm output | x1 |
| RJ45 | x1 |
| Electrical | |
| Power Supply | DC 12V / POE |
| Power consumption | ≤ 5W |
| Environmental | |
| Water Proof | IP 64 |
| Storage Temperature | -30 ~ +60 ํC |
| Operating Temperature | -30 ~ +55 ํC |
| Dimension | Ꝋ120*55mm |
| Weight | appr 400g |
