| Model |

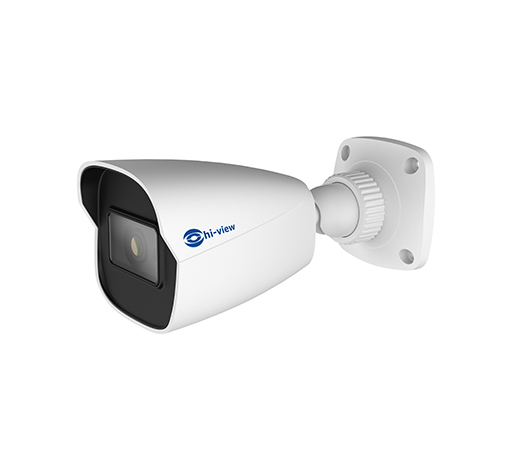

HP-97B202PE |
| Image Sensor |
1/2.9 “CMOS |
| Image Size |
1920×1080 |
| Electronic Shutter |
1/25s ~ 1/100000s |
| Iris Type |
Fixed Iris |
| Min. lllumination |
0.0035 lux@F1.2,AGC ON; 0 lux with IR |
|
0.013 lux@F2.31,AGC ON; 0 lux with IR |
| Lens |
2.8 mm @F2.0, horizontal field of view: 107 ํ |
|
3.6 mm @F2.0, horizontal field of view: 84.8 ํ |
|
6 mm @F2.0, horizontal field of view: 52 ํ |
| Lens Mount |
M12 |
| Wide Dynamic Range |
Digital WDR |
| BLC |
Yes |
| HLC |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0 ํ~360 ํ; Tilt: 0 ํ~80 ํ; Rotation: 0 ํ~360 ํ |
| Image |
|
| Video Compression |
H.265 / H.264 / MJPEG |
| H.265 Compression |
Main Profile@Leve4.1 High Tier |
| Resolution |
1080P (1920×1080), 720P (1280×720), |
|
D1, CIF, 480×240 |
| Main Stream |
60Hz: 1080P (1~30fps) / 720P (1~30fps) |
|
50Hz: 1080P (1~25fps) / 720P (1~25fps) |
| Sub Stream |
60HZ: D1/CIF/480×240 (1~30fps) |
|
50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 6Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Setting |
ROI, Saturation, Brightness, Chorma, Contrast, |
|
Wide Dynamic, Defog, Sharpen, NR.etc. adjustable |
|
through client software or web broser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
|
| Network |
RJ45 |
| Audio |
1CH audio input |
| Storage |
Built-in micro SD card slot; up to 128GB |
| Model |
HP-97B202PE |
| Hardware Reset |
Yes |
| Function |
|
| Remote Monitoring |
Web browsing, CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 3 users; |
|
Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, |
|
DDNS, SMTP, 802.1x, UPnP, HTTP, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, SD card full. SD card error |
| Intelligent Analytics |
Video blur setection, line crossing detection and |
|
region intrusion detection (optional) |
| General Function |
Watermark, IP address Filtering, video mask, |
|
heartbeat, illegal login lock |
| PoE |
Yes |
| IR Distance |
20 ~ 30 m |
| Ingress Protection |
IP67 |
| Others |
|
| Power Supply |
DC12V / PoE |
| Power Consumption |
< 5.5W |
| Operating Environment |
-30 ํ~60 ํC (-22 ํF~140 ํF) |
|
Humidity: less than 95% (non-condensing) |
| Dimensions (mm) |
167.5×74.5×167.5 |
| Weight (net) |
Approx. 0.39KG |
| Installtion |
Ceiling mounting; Wall mounting |
