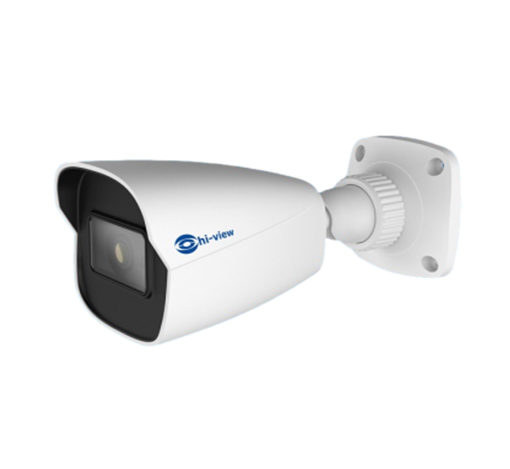

กล้องวงจรปิด IP Bullet ยี่ห้อ HI- VIEW รุ่น HP-97B20STPE
- 1/2.8″ SONY CMOS progressive scan
- Pixels 2.0 Megapixel
- Color 0.005 lux@F1.6, AGC ON, 0 lux with IR Black/White 0.0028 lux@F1.2, AGC ON, 0 lux with IR
- Electronic Shutter 1/25s ~ 1/100,000s
- Day / Night Auto/day/night/timing
- White Balance Auto / Indoor/ Outdoor / Manual
- 2.8mm@F1.85 / IR Array x1 / IR Distance 20-30M.
- 12V DC +- 10% / PoE (IEEE802.3af)
- Wate-Proof IP67
| Model | HP-97B20STPE |
| Image Sensor | 1/2.8″ SONY CMOS progressive scan |
| CPU | Hisilicon Hi3516EV100 |
| Pixels | 2MP |
| Min. lllumination | “0.005 lux@F1.6, AGC ON, 0 lux with IR 0.0028 lu@F1.2, AGC ON, 0 lux with IR” |
| Electronic Shutter | 1 / 25 s – 1 / 100000 s |
| Lens | |
| Mount Type | M12/F1.85 |
| Focal Length | 2.8mm. |
| Horizontal Field of View | 99.7ํ |
| Iris Type | Fixed Iris |
| Infrared | |
| Day / Night Mode | Auto/day/night/timing |
| IR-CUT Filter | Supported |
| IR Array | x1 |
| IR Array Distance | 20-30M. |
| Smart IR | Supported (On/Off) |
| Display | |
| Image Parmeter | 3 type (common, day, night) and schedule setting |
| Brihtness Adjust | Supported |
| Contrast Adjust | Supported |
| Hue Adjust | Supported |
| Saturation Adjust | Supported |
| Sharpness Adjust | Supported |
| Noise Reduction | Supported 3D DNR |
| Defog | Supported |
| WDR / BLC / HLC | Supported |
| Anti-Filcker | Supported 50Hz/60Hz |
| White Balance | Supported (Auto/indoor/outdoor/manual) |
| Frequency | Supported 50Hz/60Hz |
| Exposure Mode | Supported auto/manual (1/25s-1/100,000s) |
| Gain | Supported |
| Image Mirror / Image Flip | Supported |
| Backlight Compensation | Supported |
| E-zoom | Supported |
| Images | |
| Video Compression | H.265, H.264, MJPEG |
| Compression Standard | Base line, Main Proflle, High Profile |
| Stream | Dual stream |
| Image Resolution | Main stream 1920×1080, 1280×720
Sub stream 704×576, 480×240, 352×288 |
| Image Frame Rate | Main stream 1920×1080, 1280×720@25fps(PAL)
Sub stream 704×567, 480×240, 352×288@25fps(PAL) |
| Bit Rate | Main stream 768-4096 Kbps
Sub stream 256-2048 Kbps |
| Bit Rate Control | CBR/VBR |
| Video Encode Slice Split | Supported |
| Water Mark | Supported |
| Date and Time | Supported DST, NTP, synchronize with PC, manual |
| Video Mask | Supported (Max. 4 areas) |
| ROI | Supported (Max. 3 areas) |
| Alarm | |
| Motion Alarm | Supported |
| Motion Alarm Holding Time | 3Sec/5Sec/10Sec/20Sec/30Sec/60 Sec/ 2 Minutes |
| Motion Sensitivity | Supported |
| Motion Schedule Setting | Supported |
| Motion Alarm Triggering | Trigger snap/SD card record/email |
| SD Card Full Alarm | Supported |
| SD Card Error Alarm | Supported |
| Alarm Server | Supported |
| Network | |
| Network Protocols | IPv4, IPv6, DNS, PPPoE, HTTP, HTTPS, RTSP, DNS, SNMPv1/v2/v3,802.1X, RTSP, UPNP, SMTP, FTP, QoS, ONVIF, DST< NTP |
| Test IPAddress Function | Supported |
| DDNS Protocol | autoddns.com/88ip.net/dns2p.net/meibu.com/dyndns.com/
no-ip.com/dvrdydns/mintdns/123ddns.com |
| Free DDNS | www.autoddns.cm, dvrdydns, Etc. |
| Application Programming | ONVIF profile S |
| IP Change Notification | Supported (Tringering email) |
| User Interface | IE 11,NVMS2.0, APP (Superliveplus) |
| Storage | |
| Record Sourch | SD-Card slot |
| Record Stream | Dual stream (main, sub) |
| Pre Record Time | 3, 6secs |
| Cycle Write | Supported |
| Record Timning | Supported week schedule/ holiday schedule |
| Security | |
| User Account Management | Supported |
| IP/MAC Address Filter | Support (black and white list) |
| Locking Once lllegal Login | Supported |
| Online User Checking | Supported Kick-off |
| Maintenance | |
| Backup and Restore | Supported export/import setting, load defaulf |
| Reboot | Supported time/date schedule |
| System Upgrade | Supported |
| Log Serach | Supported export log |
| Interfaces | |
| RJ45 | x1 (Speed 100Mbps), POE |
| SD-Card Slot | x1 (Max. 128GB) |
| Hardware Reset Buttom | x1 |
| Power Input | x1 (DC jack) |
| Environmental | |
| Operating Temperature | -30ํC-+60ํC (-22ํF-140ํF) |
| Operating Humidity | Less than 95% or less (non-condensing) |
| Wate-Proof | IP67 |
| Electrical | |
| Power Supply | 12V DC +- 10% / PoE (IEEE802.3af) |
| Power Consumption | <6W |
| Mechanical | |
| Weight | Approx. 0.39KG |
| Dimensions | 167.5x745x74.5mm. |
| Installation | Wall mounting, ceiling mounting |
| Angle Adjustment | Pan: 0ํ-360ํ; Tilt:0ํ-80; Rotation: 0ํ-360ํ |
