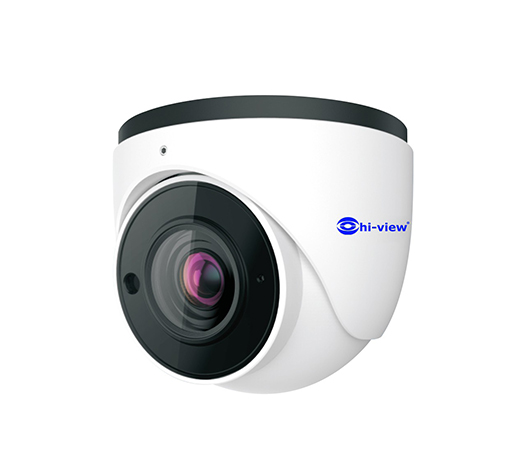

กล้องวงจรปิด IP DOME ยี่ห้อ HI- VIEW รุ่น HP-97D20VPE
- 2MP ( 1920 x 1080 ) H.265 full real time coding
- Max. resolution: 1920 x 1080; ICR auto switch, true day / night
- 30 ~ 50m IR night view distance
- 3D DNR, digital WDR, HLC, BLC and ROI coding
- 1CH built-in MIC
- Built-in micro SD card slot, up to 128GB
- DC12V/PoE power supply
- IP67 ingress protection
- Support three streams
- Support mobile surveillance by smart phones and tablet PCs with iOS or Android OS
- Intelligent analytics
SPECIFICATION
| Model | HP-97D20VPE |
| Camera | |
| Image Sensor | 1/2.8 “CMOS |
| Image Size | 1920x 1080 |
| Electronic Shutter | 1g~1/100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.0035 lux@F1.2.AGC ON; 0 lux with IR 0.009 lux@F1.6.AGC ON; 0 lux with IR |
| Lens | 2.8~12mm@f1.4, manual zoom lens |
| Feldof View | Horizontal:88-34.8 ํ: Vertical: 57-20 ํ Diagonal: 96-39.6 ํ |
| Lens Mount | Ꝋ 14 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan:0 ํ~360 ํ; Tilt:0 ํ~80 ํ; Rotation: 0 ํ~360 ํ |
| Image | |
| Video Compression | H.265/ H.264 |
| H.265 Compression Standard | Main Profile@ Leve4.1 High Tier |
| Resolution | 1080P(1920 X1080), 720P(1280X720), D1, CIF, 480X240 |
| Main Stream | 60Hz:1080P/720P(1~30fps); 50Hz:1080P/720P(1~25fps); |
| Sab Stream | 60Hz:D1/CIF(1~30fps); 50Hz:D1/CIF(1~25fps) |
| Third Stream | 60Hz:D1:CIF/480×240(1~30fp:); 50Hz:D1:CIF/480×240(1~25fp:) |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Bit Rate type | VBR / CBR |
| Audio Compression | G711A/U |
| Image Settings | ROI, Saturution, Brightness. Hue, Contrast, Wide Dynamic. Sharpness, NR, ete. adjustable throughcient sofluare or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Video Output | No |
| Audio | Built-in MIC = 1 |
| Storage | Bailt-in micro SD crd slot: up to 128GB |
| Reset | Yes |
| Functions | |
| Remote Monitoring | Web browsing, CMS remoto control |
| Online Connection | Support simultancous monitoring for up to 3 users; Support multi-stream realtime transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP. HTTP, FTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD cand storage |
| Smart Alam | Motion detection, SD card error, SD card full |
| Intelligent Analytics | Video blur detection, scene change detection, line crossing detection and region intrusion, object removal detection (object left/missing) |
| General Function | Watermark, IP address filtering, video mask. heartbeat.illegal login lock |
| PoE | Yes, IEEE802.3af |
| IR Distance | 30 ~ 50m |
| Ingress Protection | IP67 |
| Other | |
| Power Supply | DCI2V (PoE power supply optional) |
| Power Consupmtion | <7.5W |
| Operating Environment | -30 ํC ~ 60 ํC (+22 ํF ~ 140 ํF) Humidity:less than 95 %s (non-condessing) |
| Dimension (mm) | Ꝋ1115.×99.6 |
| Weight (net) | Approx 0.64KG |
| Installation | Ceiling mounting (wall mounting available with the junction box und bracket) |
| Certificate | CE, FCC |
| Environmental Protoction | Complice with Directive EU RoHS, WEEE(2012/19/EU). directive 94/62/EC and REACH(EC1907/2006) |
