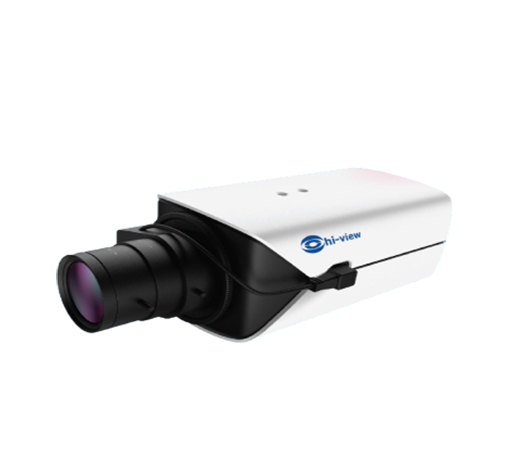

กล้องวงจรปิด IP Standard ยี่ห้อ HI- VIEW รุ่น HP-97S40PE-E3-AI
- Smart H.265 / H.265+ / H.265 / Smart H.254 H.254+ / H.254 / MJPEG coding
- Max. resolution: 2592 x 1520
- ICR auto switch, true day I night vision
- 3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
- Built-in micro SD card slot; up to 128GB
- 1CH audio input; 1CH audio output; 1CH built-in MIC
- 2CH alarm input; 2CH alarm output
- AC24v/DC12V/PoE power supply
- Support three streams
- P2P function optional
- Support remote monitoring by smart phones tablet PCs
- with ios and Android OS
- Intelligent analytics
SPECIFICATION
| Model | HP-97S40PE-E3-AI |
| Image Sensor | 1 / 3 “CMOS |
| Image Size | 2592 x 1520 |
| Electronic Shutter | 1/30s ~ 1/100000s |
| Iris Type | DC Iris |
| Min. Illumination | Color: 0.0028 lux@F1.2.AGC ON |
| B&W: 0.001 lux@F1.2.AGC ON | |
| Lens Mount | CS |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Image | |
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ |
| H.264 / MJPEG | |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296) |
| 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240 | |
| Main Stream | 4MP/2K/3MP/1080P/720P (60Hz:1~30fps; 50Hz:1~25fps) |
| HFR mode: 1080P/720P( 60Hz: 1~60fps; 50Hz: 1~50fps) | |
| Sub Stream | 720P/D1/CIF/480×240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Third Stream | D1/CIF/480×240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bit Rate | 64 Kbps~8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, |
| NR,etc. adjustable through client software or web browser | |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Video Output | CVBS output (BNCx1) |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC |
| Alarm | 2CH alarm input; 2CH alarm output |
| Storage | Built-in micro SD card slot; up to 128GB |
| Reset | Yes |
| Model | HP-97S40PE-E3-AI |
| RS 485 | Yes |
| Intelligent Analytics (Smart Events) | |
| Perimeter Protection | Line crossing, region entrance / exiting / intrusion |
| (human / motor vehicle / non-motor vehicle classification) | |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video color cast detection |
| Face Detection | Face detection and face capture |
| General Intelligence | Crowd density detection, heat map, object abandoned |
| missing detection | |
| Functions | |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users |
| Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, |
| FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QOS | |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full |
| IP address conflict, cable disconnection | |
| General Function | Watermark, IP address filtering, video mask, heartbeat, |
| password protection, non-photosensitive switch, image | |
| distortion correction | |
| POE | Yes , IEEE802.3af |
| Others | |
| Power Supply | AC24V / DC12V / PoE |
| Power Consumption | < 11W |
| Operating Environment | 30C~60C (-22F~140F) |
| Humidity: less than 95% (non-condensing) | |
| Dimensions (mm) | 160.8 x 79 x 64 |
| Weight (net) | Approx. 0.5KG |
| Installation | Ceiling mounting; Wall mounting |
