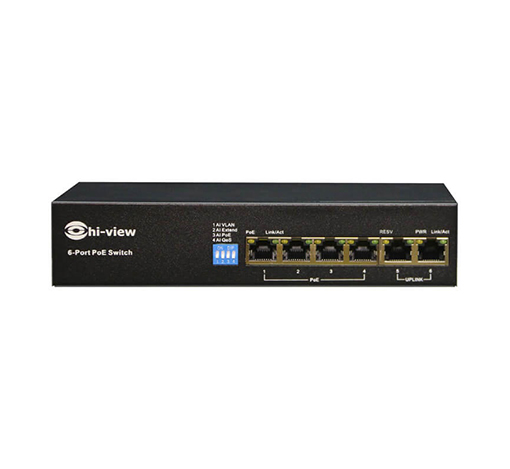

POE Switch 6 Port ยี่ห้อ Hi – View รุ่น HR-SW6 2P4 AI
- Al Extend: 1-4 ports support 250 meters long distance power
- supply (should be use cat5e or cat6 cable)
- AI VLAN: Isolating ports 1-4 to each other can effectively suppress network storms and improve network perlormance.
- AI QoS: Prioritize the identified video data to make video transmission smoother
- Al PoE:Automatic detection power of port, power off and restart the device if find dead machine
- Support wireless access points (APs) and network surveillance cameras via Cat 5 cables
- Support IEEE802.3at / at standard PD device
- Supports uplink port auto-llip (Auto MDI / MDIX)
- Adopt store-and-forward exchange mechanism
- With power circuit protection, it can protect the security of the back-end equipment
- Zero configuration feature power is automatically supplied to the adaptive device
- No fan design to achieve energy saving and environmental protection
- Support port no link power saving function
Specification
| Model | HR-SW6 2P4 AI |
| Network Port | 4 10/100Mbps PoE RJ45 port (Port 1~ port4) |
| 2 10/100Mbps RJ45 port uplink (Port5-port 6) | |
| Transfer Rate | 100Mbps full Duplex, 10 or 100Mbps Half Duplex |
| Network protocal and standard | IEEE 802.3i |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3at | |
| IEEE 802.3at | |
| Performance | Bandwidth: 1.2Gbps (no block) |
| Network delay (100 to 100M bps): | |
| maximum 20 us (using 64 byte packet) | |
| Frame fitering and transmission rate: | |
| 10M port maximum 14,800pps | |
| 100M port maximum 148,800pps | |
| LED indicator | Power |
| LINK / ACT | |
| RESV | |
| PoE Indicator light | |
| PoE pin | 1/2+, 3/6-; |
| Power | Max power for single port30W |
| Internal power adapter: 60W | |
| Dimensions | Size (LxWxH): 190mm x 40mm x 131mm |
| Weight: 1kg | |
| Environment | Operating Temperature: 0 ํ-40 ํC |
| Operating Humidity: 10%~ 90%, | |
| Non-condensing | |
| safety regulation | CE / ROHS / FCC / CCC |
