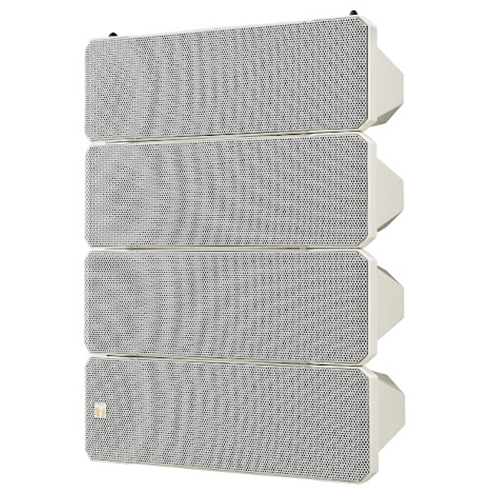

ตู้ลำโพง ยี่ห้อ TOA รุ่น HX-7W
The HX-7W is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The HX-7W is designed for indoor use.
Specification
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous pink noise: 250 W (IEC60268-5: 350 W) Continuous program: 750 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 100 dB (1 W, 1 m) |
| Frequency Response | 75 Hz – 20 kHz |
| Crossover Frequency | 1.7 kHz |
| Directivity Angle | Horizontal: 100゜ Vertical: Depending on directivity angle mode |
| Speaker Component | Low frequency: 13 cm (5.5″) cone-type × 8 High frequency: Wave front control horn with compression driver × 4 |
| Input Terminal | Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 9 mm (0.35″) |
| Finish | Enclosure: Polypropylene, white Punched net: Surface-treated steel plate, white, paint Hanging bracket: Steel plate, t3.0, white, paint |
| Dimensions | 497 (W) × 664 (H) × 274 (D) mm (19.57″ × 26.14″ × 10.79″) |
| Weight | 30 kg (66.14 lb) |
| Accessory | Hanging bracket L, R (L and R are symmetrical to each other.) …1 each, Hanging bracket mounting bolt …4 |
| Option | Matching transformer: MT-200 (*1) Matching transformer adapter: HY-MT7 Speaker mounting bracket: HY-60DW, HY-CN7W, HY-PF7W, HY-VM7W, HY-WM7W (*2), HY-C0801W (*2) Speaker stand adapter: HY-ST7 |
