ID2456 ViewSonic บอร์ดอัจฉริยะ คุณภาพดี ราคาถูก

ID2456

Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

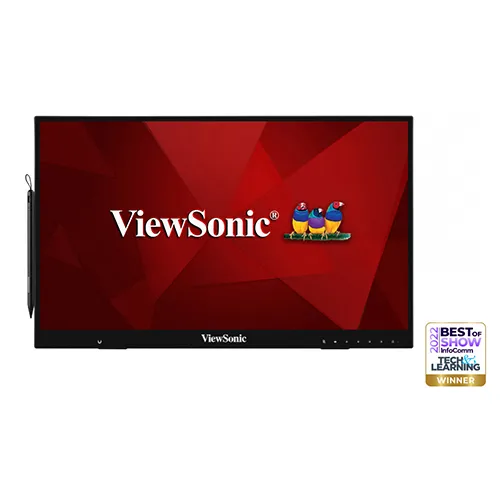

จออินเตอร์แอคทีฟ ยี่ห้อ ViewSonic รุ่น ID2456

PCAP touch technology for fast and accurate touch response
USB-C for instant plug-and-play connectivity via a single cable
Ergonomic flexibility for optimal positioning in any task or setup
Extended Windows Ink workspace for digital writing and design
Compatible with all devices that support Microsoft Pen Protocol

Menu Control
HDMI in
USB-C
VGA
HDMI out
Earphone
Audio in
VESA Compatible
(Wall Mount 100 x 100mm)
Internal Speakers
USB-A
USB-B
AC in

ข้อมูลจำเพาะ

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 88% size (Typ)
sRGB: 120% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Anti-Glare, Hard Coating (6H)
Cover Glass Thickness: 2mm
Compatibility
PC Resolution (max): 1920×1080
Mac® Resolution (max): 1920×1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920×1080
Connector
VGA: 1
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger)
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
HDMI 1.4 Out: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 3Watts x2
Power
Eco Mode (Conserve): 25.72W
Eco Mode (optimized): 29.22W
Consumption (typical): 31W
Consumption (max): 32W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 0 (touch enable/disable), Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 15 ~ 86KHz, Type C: 15 ~ 86KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, Type C: 24 ~ 75Hz
Video Input
Digital Sync: TMDS – HDMI (v1.4), Micro-Packet – Type C
Analog Sync: Separate/Composite/SOG – RGB Analog
Ergonomics
Tilt (Forward/Back): 15º / 70º
Weight (imperial)
Net (lbs): 11
Net Without Stand (lbs): 11
Gross (lbs): 15
Weight (metric)
Net (kg): 5
Net Without Stand (kg): 5
Gross (kg): 6.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 23.8 x 15.9 x 4.9
Physical (in.): 21.44 x 13.11 x 1.7
Physical Without Stand (in.): 21.44 x 13.11 x 1.7
Dimensions (metric) (wxhxd)
Packaging (mm): 605 x 405 x 125
Physical (mm): 544.6 x 333.1 x 43.3
Physical Without Stand (mm): 544.6 x 333.1 x 43.3
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, CE, CE EMC, LVD/CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, PSE, BIS
PACKAGE CONTENTS: ID2456 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1, MPP2.0 Active Pen x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
