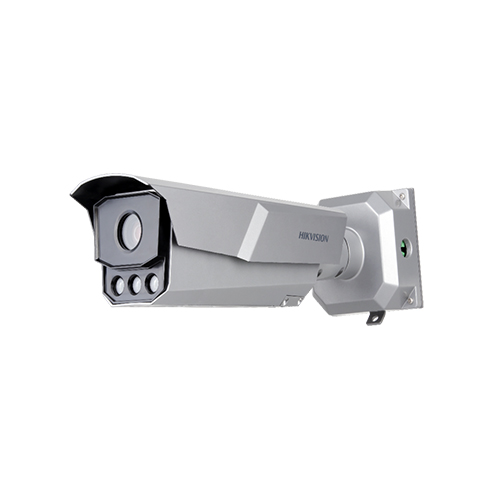

iDS-TCD403-BI

 Traffic Accessories ยี่ห้อ HIKVISION รุ่น iDS-TCD403-BI

• Applicable to signal control system, traffic information service system, road traffic surveillance, etc.
• High quality imaging with 4 MP resolution(1/1.8” CMOS)
• Multiple targets visualization in bi-directional 6 lanes with vertical coverage.
• Information detection of multiple targets lane, speed, direction, etc.
• Multiple traffic data collection: statistics and uploading of different lanes, including data of traffic flow, speed, status, queue, time headway, space headway, number of parking vehicle in area, space occupancy, time occupancy, etc. in 1 to 3,600 s.
• Traffic evaluation data output, including queue length.
• Two virtual coils for each lane. Signal output of vehicle entering and exiting virtual coils. Positions of virtual coils are adjustable.
• Defog, HLC, WDR, and multiple white balance modes, satisfying various scenes.
• Network and RS-485 data uploading.
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Specification

Camera

• Image Sensor1/1.8″ progressive scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON), 0.0005 Lux with IR
• Shutter Time1/25 s to 1/100,000 s
• Slow ShutterSupported
• Day & NightIR cut filter

Lens

• Focal Length & FOV 8-32 mm; Horizontal FOV: 39.7° to 15.9°; Vertical FOV: 22.3° to 9.1°; Diagonal FOV: 45.8° to 18.1°

FocusAuto

• Iris TypeDC drive
• ApertureF1.63-1.8

Illuminator

• Built-In Supplement Light RangeUp to 100 m
• IR Wavelength850 nm
