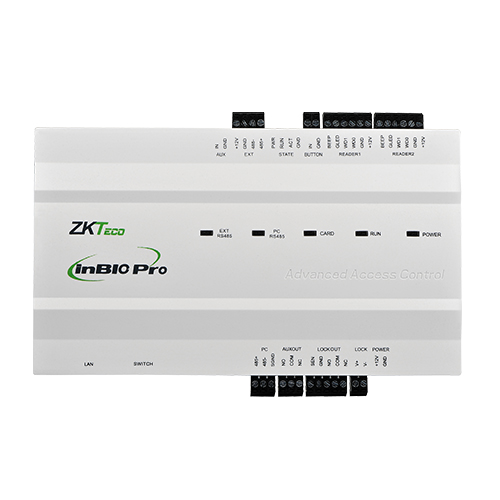

inBio460 Pro

แผงควบคุมการเข้าออกประตู  ยี่ห้อ ZKTeco รุ่น inBio460 Pro

• Number of Doors Controlled : InBio-160 Pro: 1 Door , InBio-260 Pro: 2 Door , InBio-460 Pro: 4 Door
• Number of Readers Supported : InBio-160 Pro: 4 (2 RS-485 Reader, 2 26-bit wiegand reader) , InBio-260 Pro: 8 (4 RS-485 Reader, 4 26-bit wiegand reader) , InBio-460 Pro: 12 (8 RS-485 Reader, 4 26-bit wiegand reader）
• Types of Readers Supported : 26-bit Wiegand and RS485 FR Series Reader
• Number of Inputs : InBio-160 Pro: 3 (Exit Button and Door Status, 1 AUX) , InBio-260 Pro: 6 (2 Exit Button, 2 Door Status, 2 AUX) , InBio-460 Pro: 12 (4 Exit Button, 4 Door Status, 4 AUX)
• Number of Outputs : InBio-160 Pro: 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output) , InBio-260 Pro: 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) , InBio-460 Pro: 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
• Card Holders Capacity : 60,000
• Fingerprint Capacity : 20,000
• Log Events Capacity : 100,000
• Communication : TCP/IP
• Package Dimension : 350(L) × 90(H) × 300(W)mm
• Package Weight : InBio-160 Pro: 3.6kg , InBio-260 Pro: 3.6kg , InBio-460 Pro: 3.7kg
• CPU : 32 bit 1.2GHz CPU
• RAM : 128MB
• Flash Memory : 256MB
• Power Supply : 9.6V – 14.4V DC
• Operating Temperature : 0 – 45 °C
• Operating Humidity : 20% to 80%
