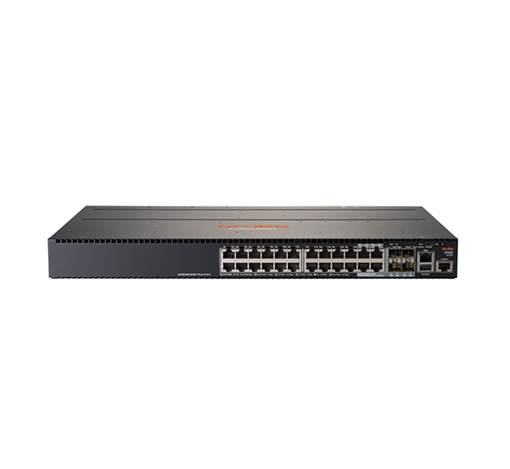

SWITCH ยี่ห้อ ARUBA รุ่น JL320A

Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1ad , IEEE 802.1AX , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1v , IEEE 802.1w , IEEE 802.1x , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3at , IEEE 802.3az , IEEE 802.3bz , IEEE 802.3x
Features: Access Control List (ACL) support , ARP support , BOOTP support , Class of Service (CoS) , CPU protection , DHCP protection , DHCP server , DHCP support , DiffServ support , Dynamic ARP protection , Dynamic VLAN Support (GVRP) , Flow control , Full duplex capability , ICMP Router Discovery Protocol (IRDP) , IGMP snooping , Internet Control Message Protocol (ICMP) , IPv6 support , Jumbo Frames support , Link Aggregation Control Protocol (LACP) , LLDP support , LLDP-MED , MAC address lockout , Management Information Base (MIB) , Management Information Base (MIB) II , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Multiple VLAN Registration Protocol (MVRP) , Neighbor Discovery Protocol (NDP) , OpenFlow support , Quality of Service (QoS) , sFlow , SNTP support , Spanning Tree Protocol (STP) support , STP BPDU Guard , STP Root Guard , Syslog support , Type of Service (ToS) , Uni-Directional Link Detection (UDLD) , Virtual Extensible LAN (VXLAN) , VLAN support
Form Factor: Rack-mountable
Jumbo Frame Support: 9220 bytes
MAC Address Table Size: 32768 entries
Manageable: Yes
PoE Budget: 720 W
Ports Qty: 24
Power Over Ethernet (PoE): PoE+
Remote Management Protocol: CLI , HTTP , RMON 1 , SNMP , SNMP 1 , SNMP 2 , SNMP 2c , SNMP 3 , SSH , SSH-2 , Telnet , XRMON
Routing Protocol: CIDR , ECMP , IGMP , IGMPv2 , IGMPv3 , MLD , OSPF , OSPFv2 , OSPFv3 , RIP , RIP-1 , RIP-2 , RIPng , Static IP routing , Static IPv4 routing , Static IPv6 routing
Stackable: Stackable
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Performance
Type: Throughput
Value: 95.2 Mpps
Type: Switching capacity
Value: 128 Gbps
Type: Latency (1 Gbps)
Value: 3.1 µs
Type: Latency (10 Gbps)
Value: 3.4 µs
Type: Latency (10 Mbps)
Value: 98.5 µs
Type: Latency (100 Mbps)
Value: 11.8 µs
Ports
Qty: 20
Type: 10/100/1000 (PoE+)
Ports (2nd)
Qty: 4
Type: Combo Gigabit SFP
Power Device
Frequency Required: 50/60 Hz
Installed Qty: 0
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Type: Internal power supply
