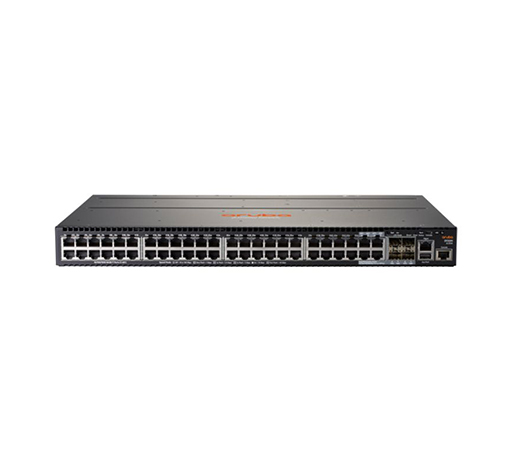

SWITCH ยี่ห้อ ARUBA รุ่น JL323A

• Enclosure Type Rack-mountable 1U
• Subtype Gigabit Ethernet
• Ports 36 x 10/100/1000 (PoE+) + 4 x combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP + 8 x 1/2.5/5/10GBase-T (PoE+)
• Power Over Ethernet (PoE) PoE+
• PoE Budget 1440 W
• Performance Latency (1 Gbps): 3.1 µs ¦ Latency (2.5 Gbps): 6.5 µs ¦ Latency (5 Gbps): 4.2 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Throughput: 112 Mpps ¦ Stacking bandwidth: 100 Gbps ¦
• Switching capacity: 320 Gbps
• Capacity IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ OSPF routes: 200 ¦ RIP routes: 10000 ¦ Static routes: 256
• MAC Address Table Size 32768 entries
• Jumbo Frame Support 9220 bytes
• Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
• Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
• Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP
• support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames
• support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information
• Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery
• Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP),
• Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard
• Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE
• 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
• Power AC 120/230 V (50/60 Hz)
• Dimensions (WxDxH) 44.25 cm x 32.43 cm x 4.39 cm
• Weight 4.45 kg
