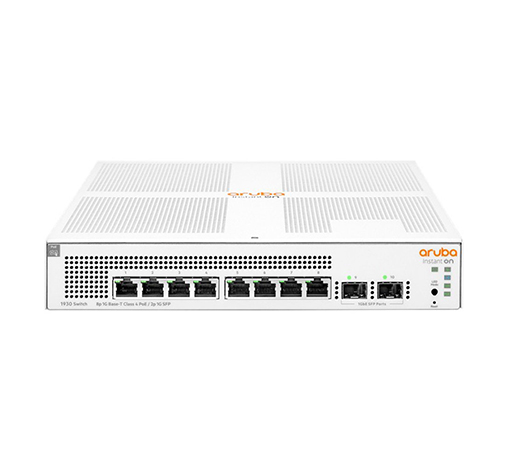

SWITCH ยี่ห้อ ARUBA รุ่น JL681A
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
- Interface
- 8× 10/100/1000 Mbps RJ45 Ports (8 PoE ports Power Budget 124 W)
- 2x 1G SFP and RJ-45 combo uplinks
- Switching Type : Layer 2 switching (Lite L3), static routes – link aggregation – VLANs
- Switching Capacity : 20Gbps
- Casing : Metal
- Package
- ARUBA IOn 1930 8G Class4 JL681A
- Power cord
- Quick start guide
- EASY SET UP AND MANAGEMENT
- HIGH PERFORMANCE WITH FLEXIBLE OPTIONS
- OPTIMIZED USER EXPERIENCE
- MULTI-SITE MANAGEMENT
- BUILT-IN SECURITY
- AESTHETIC DESIGN
| SKU | JL681A |
| Brand | Aruba |
| Model | (JL681A) Switch “Aruba” Instant On 1930 8G PoE+ 2SFP |
| I/O Ports and Slots | 8 RJ-45 autosensing,10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) |
| Memory and Processor | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Mounting and enclosure | n/a |
| Throughput | 14.88 Mpps |
| Switch Capacity | 20 gbps |
| MAC address table size | 8K addresses |
| Frequency | 50/60 Hz |
| AC voltage | 100 – 127 / 200 – 240 VAC |
| Management | Aruba Instant On solution; Web browser; SNMP Manager |
| Dimension | 25.4 x 25.4 x 4.39 cm |
| Weight | 1.16 kg |
| Warranty | Limited Lifetime |
