ตู้ลำโพง ยี่ห้อ JBL รุ่น KP4015

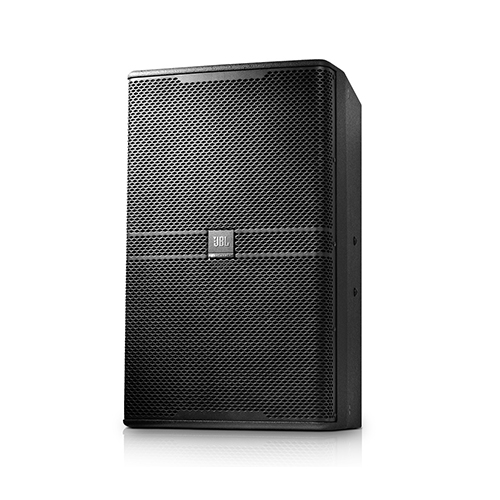

15 Inch 2-Way Full Range Loudspeaker System
The KP4015 is a compact and premium high-output full-range loudspeaker. The KP4015 uses a 380 mm (15 in) humidity protection woofer with optimal demodulating/cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 400 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.
Features
- 15″ High efficiency woofer design
- 1.5″ annular polymer diaphragm compression driver
- Enclosure constructed of 15 mm birch plywood with rugged durable finish
- 70° x 100° coverage pattern for even and smooth response on and off axis
- Attractive cloth backed robust steel grille design
- Precision engineered crossover for optimal driver integration
- Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
- Two enclosure color option: Black (KP4015) or White (KP4015-WH)
- Karaoke sound reinforcement
- Club live sound reinforcement
Specifications
- System Type : 15″, 2-way, bass-reflex
- Frequency Range (-10dB) : 45 Hz – 20 KHz
- Frequency Response (±3 dB) : 75 Hz – 20 KHz
- System Sensitivity (1w @ 1m) : 99 dB
- Nominal Impedance : 8 ohms
- Maximum SPL (1m) : 127 dB (133 dB peak)
- Power Rating(Continuous/Program/Peak): 400 W/800 W/1600 W
- Coverage Pattern : 70° x 100° (H x V)
- Dimensions (H x W x D) : 680 mm x 410 mm x 440 mm (26.8 in x 16.1 in x 17.3 in)
- Net Weight : 23.0 Kg (50.7 lbs)
- LF Driver : 1 x 15 inch woofer, 3 inch voice coil, ferrite magnet
- HF Driver : 1 x 2408H-2 compression driver, 1.5 inch voice coil, NEO magnet
- Input Connectors : 2 x Neutrik® Speakon® NL4MP
- ENCLOSURE CONSTRUCTION: Trapezoid, 15 mm, plywood
- Enclosure Color: Black (KP4015)/White(KP4015-WH)
