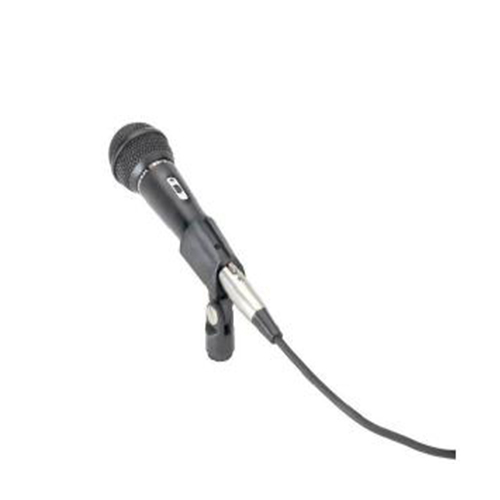

Condenser Handheld Microphone ยี่ห้อ BOSCH รุ่น LBB9600/20

This condenser microphone is based on an electric transducer element in a sturdy housing with shielding against wind and wind bursts (pops). It is intended for public address and sound reinforcement applications, such as in churches, theaters, and conference centers

• Condenser transducer
• Unidirectional
• High speech intelligibility
• Low sensitivity to case noise and vibrations
• Phantom powered

Technical specifications
Electrical*
Phantom power supply

• Voltage range 11 V to 52 V (acc. to DIN 45596 and IEC 268-15A)
• Current consumption <1.5 mA

Performance

• Polar pattern Unidirectional
• Frequency range 100 Hz to 16 kHz
• Sensitivity 2 mV/Pa +/-‑3 dB  (-54 dB rel. to 1 V/Pa)
• Rated output impedance 200 ohm
• Equivalent input noise level 26 dB (A)
• * Technical performance data acc. to IEC 60268-4

Mechanical

• Dimensions (D x L) 54 x 170 mm (2.13 x 6.69 in)
• Weight 245 g (8.64 oz)
• Color Black
• Switch On/off slide
• Cable type
• Cable length 7 m (23 ft)
• Connector 3‑pin XLR (male)

Environmental

• Operating temperature -20 °C to +55 °C (-4 °F to +131 °F)
• Storage temperature -40 °C to +70 °C (-40 °F to +158 °F)
• Relative humidity <95%
