LED SCREEN  ยี่ห้อ Viewsonic รุ่น LDM136-151

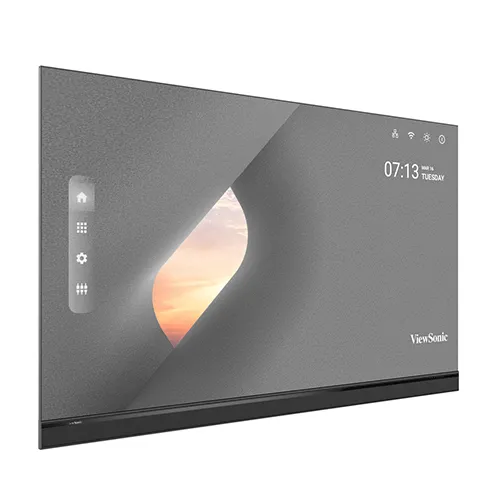

136” All-in-One Direct View LED Display

• 136″ seamless large screen with high brightness and powerful speakers
• All-in-One integration for effortless installation
• Anti-collision, dustproof, and moisture-proof with GOB surface treatment
• Detachable system control box for a minimalist appearance and easy access
• Premium aesthetics with an ultra-slim and bezel-free design
• Capable of PIP/PBP display, wireless casting, and LAN control

1. Speakers
2. HDMI Out
3. SPDIF Out
4. HDMI In*4
5. LAN
6. Audio Out*2
7. IR Interface
8. Light Sensor
9. IR Receiver
10. USB-C
11. USB-A 3.0
12. USB-A 2.0
13. Menu Control: Setting
14. Menu Control: Enter
15. Menu Control: Brightness Level
16. Power Button
17. Indicator Light

SPECIFICATIONS

• Screen Size: 136″
• Display Area (mm): 3000 (H) x 1687.5(V)
• Native Resolution: 1920×1080
• Panel Technology: Direct view LED
• LED Package Type: SMD 3 in 1 (GOB)
• Bonding Wire: Copper
• Pixel Pitch (mm): 1.56
• Brightness (max.): 600 nits (100 levels adjustable)
• Contrast Ratio (typ.): 6500:1
• Orientation: Landscape
• Viewing Angles (typ.): H = 170, V = 170
• LED Lifetime (typ.): 100,000 Hours
• Local Storage: Total 32GB (26GB available storage)
• Embedded OS: Android 9.0
• Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
• HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
• Horizontal Frequency: 31K-94kHz
• Vertical Scan Rate: 56-85Hz
• HDMI: x4
• (HDMI 2.0, HDCP 2.2)
• (internal x3 + external x1)
• USB Type A: x2
• (USB3.0 x1, USB2.0 x1)
• RJ45 Input (Internet): x3
• (internet x2, control x1)
• IR in: x1
• Wi-Fi Input: 2.4G/5G Hz
• USB Type C: x1
• (data only)
• HDMI out: x1
• (HDMI 1.4, HDCP 1.4)
• (internal x1)
• Speaker: 30Wx2
• Audio out (3.5mm): x2
• USB Type A (Power): Shared with USB input
• (5V/0.9A x1, 5V/0.5A x1, USB-C 5V/1A x1)
• RJ45 (LAN control): x1(shared with internet)
• USB Type A (Services): x1(shared with USB A input)
• RS232 (DB 9-pin female): x1
• IR Receiver: x1
• Power Supply Voltage: 100-120V/20A ~ 50/60Hz or 220-240V/10A ~ 50Hz
  (vary by country)
• Power Consumption: 609W (typ), 1740W (max)
  < 0.5W (Hibernate)
• Operating Temperature: 0~40℃
• LED Module Quantity: 100
• Ingress Protection Rating: IP54(Front)
• Net Weight: 357.14 lbs
  (162 kg)
• Gross Weight: 668 lbs
  (303kg)
• Product Dimensions (WxHxD): 118.58 x 72.19 x1.2 inches
  (3012 x 1833.5 x 31mm)
• Product Dimensions (WxHxD) with wall mount: 118.58 x 72.19 x 2.1 inches
  (3012 x 1833.5 x 53mm)
  Packing Dimensions (WxHxD) : 77.95 x 42.28 x 39.37 inches
  (1980 x 1074 x 1000mm)
• Power Cord: x1
• LAN Cable (Cat 5E): x1
• IR Extender Cable: x1
• Remote Control: x1
• QSG: x1 (Installation guide)
• Wall Mount: x1
• Spare Parts: LED module x7
• Maintenance Tool: LD-MK-003 x1
  LD-MK-004 x1
• Maintenance Tool: LD-MK-003
  LD-MK-004
• Floor Stand: LD-STND-009
