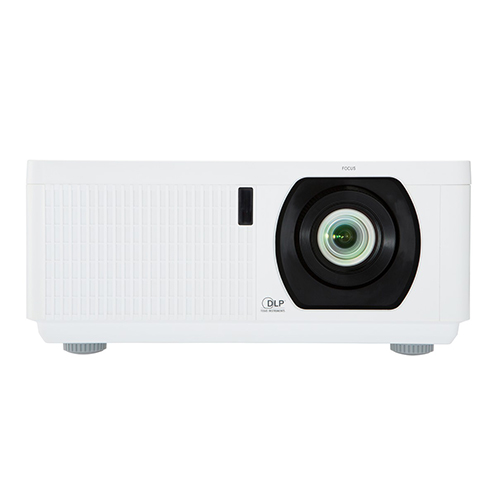

โปรเจคเตอร์ ยี่ห้อ Hitachi รุ่น LP-WU6500GD
Specification
| Hitachi LP-WU6500 – DLP projector – 3D – LAN | |
|---|---|
| Device Type | DLP projector – 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Brightness | 5000 ANSI lumens |
| Contrast Ratio | 20000:1 |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Colour Support | 1.07 billion colours |
| Bulb type | Laser diode |
| Bulb life cycle | Up to 20000 hour(s) |
| Video Input | Composite video (NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43), LAN |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i |
| Speakers | Speaker(s) – integrated |
| Power | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 460 Watt |
| Dimensions (WxDxH) | 36.1 cm x 43.7 cm x 14.7 cm |
| Weight | 10.5 kg |
| Manufacturer Warranty | 3 years warranty |
Extended Specification
| General | |
|---|---|
| 3D Capable | Yes (3D glasses sold separately) |
| Device Type | DLP projector – 1080p |
| Networking | Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 43.7 cm |
| Height | 14.7 cm |
| Weight | 10.5 kg |
| Width | 36.1 cm |
| Environmental Parameters | |
|---|---|
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x audio line-out – mini-phone stereo 3.5 mm ¦ 1 x audio line-in – mini-phone stereo 3.5 mm ¦ 1 x HDBaseT – RJ-45 ¦ 2 x HDMI input – 19 pin HDMI Type A ¦ 1 x VGA output – 15 pin HD D-Sub (HD-15) ¦ 1 x VGA input – 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input – RCA ¦ 1 x network – RJ-45 ¦ 1 x USB – 4 pin USB Type A (power only) ¦ 1 x serial RS-232 – 9 pin D-Sub (DB-9) ¦ 1 x audio line-in – RCA x 2 ¦ 1 x remote control ¦ 1 x USB (management) ¦ 1 x 3D Sync out – 3 PIN mini-DIN ¦ 1 x Mobile High-Definition Link (MHL) / HDMI – 19 pin HDMI Type A |
| Lens | |
|---|---|
| Focus Type | Manual |
| Horizontal Keystone Correction | -25 / +25 |
| Keystone Correction Direction | Horizontal, vertical |
| Lens Shift Type | Manual |
| Vertical Keystone Correction | -30 / +30 |
| Zoom Factor | 1.65x |
| Zoom Type | Manual |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – parts and labour – 3 years |
| Miscellaneous | |
|---|---|
| Compliant Standards | cUL, UL 60950-1, FCC Part 15 B Class A |
| Power | |
|---|---|
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 460 Watt |
| Power Source | AC |
| Projector | |
|---|---|
| Brightness | 5000 ANSI lumens |
| Bulb life cycle | Up to 20000 hour(s) |
| Bulb type | Laser diode |
| Colour Support | 1.07 billion colours |
| Contrast Ratio | 20000:1 |
| Controls & Adjustments | Keystone correction |
| Features | DICOM Simulation Mode, Dust Resistant Design |
| Image Size | 93.2 cm – 513 cm |
| Max Sync Rate (V x H) | 85 Hz x 91 kHz |
| Native Aspect Ratio | 16:10 |
| Projection Distance | 1.5 m – 4.98 m |
| Resolution | WUXGA – WUXGA (1920 x 1200) |
| Throw Ratio | 1.15 – 1.90:1 |
| Speakers | |
|---|---|
| Output Power / Channel | 10 Watt |
| Sound Output Mode | Mono |
| Speakers | 1 x mixed channel |
| Type | Integrated |
| Video Input | |
|---|---|
| Analogue video Signal | Composite video |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| TV System | NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43 |
| Video Interfaces | VGA, HDMI, composite video, MHL, HDBaseT |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i |
