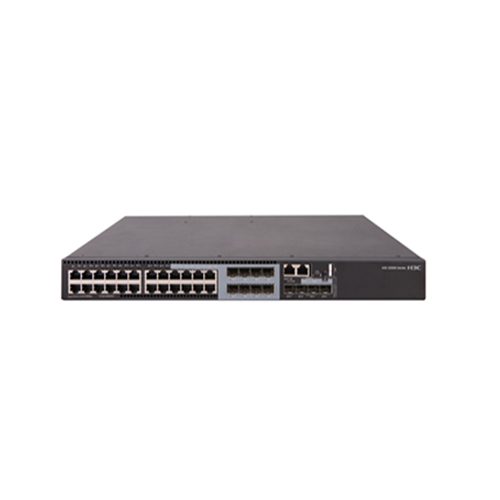

PoE Switch ยี่ห้อ H3C รุ่น LS-5560S-28P-EI-GL
| Item | S5560S-28S-EI | S5560S-52S-EI | S5560S-28P-EI | S5560S-52P-EI |
| Port Switching capacity | 128Gbps | 176Gbps | 56Gbps | 104Gbps |
| Box Switching capacity | 598Gbps | |||
| Packet forwarding rate | 96 Mpps | 132 Mpps | 42 Mpps | 78 Mpps |
| CPU | 1 Core, 800MHz | |||
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Weight | ≤ 8 kg (17.64 lb) | ≤ 8.5 kg (18.74 lb) | ≤ 8 kg (17.64 lb) | ≤ 8.5 kg (18.74 lb) |
| Flash/SDRAM | 512MB/512MB | |||
| Management Ethernet ports | 1 | |||
| Console ports | 1 × RJ-45 console port1 × Micro-USB port
Only the Micro-USB port is available if you connect both ports. |
|||
| Service ports | 24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces)4 × 10G SFP+ ports | 48 × 10/100/1000Base-T autosensing Ethernet ports4 × 10G SFP+ ports | 24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces)4 × GE SFP ports | 48 × 10/100/1000Base-T autosensing Ethernet ports4 × GE SFP ports |
| Stacking bandwidth | 80Gbps | 16Gbps | ||
| Rated input voltage | AC: 100 VAC to 240 VAC @ 50 Hz/60 HzDC: –36 VDC to –72 VDC | |||
| Min. power consumption | Single 75 W AC input: 12 WDual 75 W AC inputs: 14 W
Single 150 W AC input: 16 W Dual 150 W AC inputs: 22 W Single 150 W DC input: 15 W Dual 150 W DC inputs: 21 W |
Single 75 W AC input: 21 WDual 75 W AC inputs: 24 W
Single 150 W AC input: 25 W Dual 150 W AC inputs: 30 W Single 150 W DC input: 26 W Dual 150 W DC inputs: 32 W |
Single 75 W AC input: 12 WDual 75 W AC inputs: 13 W
Single 150 W AC input: 15 W Dual 150 W AC inputs: 20 W Single 150 W DC input: 15 W Dual 150 W DC inputs: 21 W |
Single 75 W AC input: 21 WDual 75 W AC inputs: 23 W
Single 150 W AC input: 24 W Dual 150 W AC inputs: 29 W Single 150 W DC input: 25 W Dual 150 W DC inputs: 30 W |
| Max. power consumption | Single 75 W AC input: 33 WDual 75 W AC inputs: 36 W
Single 150 W AC input: 35 W Dual 150 W AC inputs: 42 W Single 150 W DC input: 40 W Dual 150 W DC inputs: 47 W |
Single 75 W AC input: 47 WDual 75 W AC inputs: 49 W
Single 150 W AC input: 49 W Dual 150 W AC inputs: 56 W Single 150 W DC input: 58 W Dual 150 W DC inputs: 60 W |
Single 75 W AC input: 29 WDual 75 W AC inputs: 32 W
Single 150 W AC input: 32 W Dual 150 W AC inputs: 39 W Single 150 W DC input: 35 W Dual 150 W DC inputs: 44 W |
Single 75 W AC input: 44 WDual 75 W AC inputs: 46 W
Single 150 W AC input: 46 W Dual 150 W AC inputs: 52 W Single 150 W DC input: 57 W Dual 150 W DC inputs: 59 W |
| MTBF(Year) | 131.97 | 151.28 | 150.86 | 115.68 |
| MTTR(Hour) | 1 | 1 | 1 | 1 |
| Item | S5560S-28S-PWR-EI | S5560S-52S-PWR-EI | S5560S-28F-EI | S5560S-52F-EI |
| Port Switching capacity | 128Gbps | 176Gbps | 128Gbps | 176Gbps |
| Box Switching capacity | 598Gbps | |||
| Packet forwarding rate | 96 Mpps | 132 Mpps | 96 Mpps | 132 Mpps |
| CPU | 1 Core, 800MHz | |||
| Dimensions (H × W × D) | 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.10 in) | 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.10 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Weight | ≤ 8.5 kg (18.74 lb) | ≤ 9.5 kg (20.94 lb) | ≤ 6 kg (13.22 lb) | ≤ 8.5 kg (18.74 lb) |
| Flash/SDRAM | 512MB/512MB | |||
| Management Ethernet ports | 1 | |||
| Console ports | 1 × RJ-45 console port1 × Micro-USB port
Only the Micro-USB port is available if you connect both ports. |
|||
| Service ports | 24 × 10/100/1000Base-T autosensing POE+ Ethernet ports (including 4 combo interfaces)4 × 10G SFP+ ports | 48 × 10/100/1000Base-T autosensing POE+ Ethernet ports4 × 10G SFP+ ports | 24 × 100/1000BASE-X SFP Ports (including 8 combo interfaces)4 × 10G SFP+ ports | 48 × 100/1000BASE-X SFP Ports4 × 10G SFP+ ports 4 × GE SFP ports |
| Stacking bandwidth | 80Gbps | |||
| Rated input voltage | AC: 100 VAC to 240 VAC @ 50 Hz/60 HzDC: –36 VDC to –72 VDC | |||
| Min. power consumption | 27W | 37W | Single 75 W AC input: 15 WDual 75 W AC inputs: 17 W
Single 150 W AC input: 18 W Dual 150 W AC inputs: 23 W Single 150 W DC input: 18 W Dual 150 W DC inputs: 22 W |
Single 75 W AC input: 21 WDual 75 W AC inputs: 24 W
Single 150 W AC input: 25 W Dual 150 W AC inputs: 30 W Single 150 W DC input: 26 W Dual 150 W DC inputs: 32 W |
| Max. power consumption | Single 360 W AC input: 334 W (Including 280W POE)Dual 360 W AC inputs: 678 W (Including 600W POE)
Single 560 W DC input: 573W (Including 480W POE) Dual 560 W DC inputs: 918 W (Including 480W POE) Single 720 W AC input: 676 W (Including 600W POE) Dual 720 W AC inputs: 905W (Including 810W POE) Single 1110 W AC input: 898W (Including 810W POE) Dual 1110 W AC inputs: 905 W (Including 810W POE) |
Single 360 W AC input: 354 W (Including 280W POE)Dual 360 W AC inputs: 685 W (Including 600W POE)
Single 560 W DC input: 593W (Including 480W POE) Dual 560 W DC inputs: 1060 W (Including 900W POE) Single 720 W AC input: 695 W (Including 600W POE) Dual 720 W AC inputs: 1460W (Including 1320W POE) Single 1110 W AC input: 1019W (Including 900W POE) Dual 1110 W AC inputs: 1850 W (Including 1680W POE) |
Single 75 W AC input: 47 WDual 75 W AC inputs: 49 W
Single 150 W AC input: 48 W Dual 150 W AC inputs: 55 W Single 150 W DC input: 51 W Dual 150 W DC inputs: 57 W |
Single 75 W AC input: 47 WDual 75 W AC inputs: 49 W
Single 150 W AC input: 49 W Dual 150 W AC inputs: 56 W Single 150 W DC input: 58 W Dual 150 W DC inputs: 60 W |
| MTBF(Year) | 89.35 | 61.87 | 77.58 | 153.41 |
| Vlan table | 4K | |||
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) | |||
| Storage temperature | -40℃ to 70℃(-40℉ to 158℉) | |||
| Operating & storage humidity | 5% RH to 95% RH, non-condensing | |||
| SDN/OpenFlow | OpenFlow 1.3Multiple controllers (equal/master/slave controller role)
Concurrent processing of multiple flow tables Group table Meter |
|||
| Link aggregation | 1G/10G/40G port aggregationStatic aggregation
Dynamic aggregation Multichassis link aggregation |
|||
| Port features | 802.3x flow control (full-duplex)Storm suppression based on port bandwidth percentage
Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
|||
| Jumbo frame | 10,000 | |||
| MAC address table | 16K MAC address entriesBlackhole MAC address
MAC learning limit |
|||
| VLAN | Port-based VLANMAC-based VLAN
Protocol-based VLAN IP subnet based VLAN QinQ and flexible QinQ VLAN mapping Voice VLAN MVRP |
|||
| Loop-free redundant Layer 2 topology | STP/RSTP/MSTP/PVST+/RPVST+Smart Link
RRPP G.8032 Ethernet ring protection switching (ERPS) |
|||
| DHCP | DHCP clientDHCP snooping
DHCP relay DHCP server DHCP snooping Option 82/DHCP relay Option 82 |
|||
| IRF2 | IRF2Distributed device management, distributed link aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces Local device stacking and remote device stacking Support up to 9 devices stacking |
|||
| IP routing | 12K IPV4 routing entriesStatic routing
RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6 IS-IS VRRP/VRRPv3 |
|||
| IPv6 | Neighbor Discovery (ND)PMTU
IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP Manual tunnel 6to4 tunnel ISATAP tunnel |
|||
| Multicast | IGMP Snooping v1/v2/v3 and MLD Snooping v1/v2PIM Snooping
MLD Proxy Multicast VLAN IGMP v1/v2/v3 and MLD v1/v2 PIM-DM, PIM-SM, and PIM-SSM MSDP and MSDP for IPv6 MBGP and MBGP for IPv6 |
|||
| Mirroring | Flow mirroringN:4 port mirroring
Local port mirroring and remote port mirroring |
|||
| OAM | 802.1ag802.3ah | |||
| QoS/ACL | Layer 2 to Layer 4 packet filteringTraffic classification based on source MAC, destination MAC, source IP, destination IP, TCP/UDP port number, and VLAN
Time range-based ACL Bi-directional ACLs (inbound and outbound) VLAN-based ACL issuing Rate limit for receiving and transmitting packets (a minimum CIR of 8 Kbps) Packet redirection 802.1p priority and DSCP priority Committed Access Rate (CAR) Eight queues per port (including the CPU port) Flexible queue scheduling algorithms based on both port and queue, including SP, WRR, WFQ, SP+WRR, and WDRR WRED |
|||
| Security | Hierarchical user management and password protection802.1X authentication and centralized MAC address authentication
Guest VLAN RADIUS authentication HWTACACS authentication SSH 2.0 Port isolation Port security Portal authentication EAD DHCP snooping Dynamic ARP detection BPDU guard and root guard uRPF IP/Port/MAC binding Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets Public Key Infrastructure (PKI) IP Source Guard |
|||
| Management and maintenance | Loading and upgrading through XMODEM/FTP/TFTPConfiguration through CLI, Telnet, and console ports
SNMPv1/v2/v3 Web network management Remote Monitoring (RMON) alarm, event, and history recording IMC network management system System log, alarming based on severity, debugging information output NTP Power, fan, and temperature alarming Ping and Tracert Virtual Cable Test (VCT) Device Link Detection Protocol (DLDP) LLDP, LLDP-MED Loopback detection |
|||
| Power saving | 802.3az EEEAutomatic port power-down
Scheduled port power-down (schedule job) |
|||
| IEEE | IEEE 802.3xIEEE 802.3u,
IEEE 802.3z, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3ah IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3bz IEEE 802.1p IEEE 802.1x IEEE 802.1q IEEE 802.1d IEEE 802.1w IEEE 802.1s IEEE 802.1ax IEEE 802.1ag |
|||
| EMC | FCC Part 15 Subpart B CLASS AICES-003 CLASS A
VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 for telecommunications center installations GB/T 9254 YD/T 993 |
|||
| Safety | UL 60950-1CAN/CSA C22.2 No 60950-1
IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
|||
