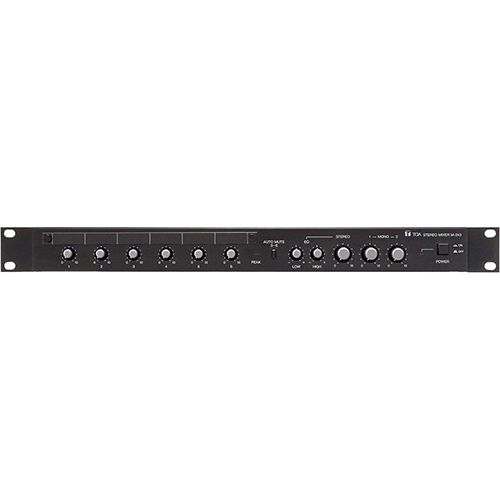

Stereo Mixer ยี่ห้อ TOA รุ่น M-243 H
The M-243 is a 19″ rack-mountable stereo mixer that comes with two monaural inputs, four stereo inputs, one stereo output and two monaural outputs.
Specifications
| Power Source | AC mains |
|---|---|
| Power Consumption | 10 W (120 V AC version) 12 W (220 – 240 V AC version) |
| Monaural Input | Line: -10 dB*, 10 kΩ, unbalanced, phone jack Mic: -60 dB*, 1 kΩ, balanced, XLR3-pin connector Mic (Pad): -40 dB*, 1 kΩ, balanced, XLR3-pin connector |
| Stereo Input (L, R) | -10 dB*, 10 kΩ, unbalanced, RCA jack |
| Auxiliary Stereo Input | +4 dB*, 50 kΩ, unbalanced, phone jack |
| Stereo Output (L, R) | +4 dB*, 1 kΩ, unbalanced, phone jack |
| Monaural Output (1, 2) | +4 dB*, 1 kΩ, unbalanced, RCA jack |
| REC Output (L, R) | -10 dB*, 1 kΩ, unbalanced, RCA jack |
| Frequency Response | 20 – 20,000 Hz (+1, -2 dB) |
| T.H.D. | 0.01 % or less (1,000 Hz, rated input/output) |
| Noise Level (IHF-A) | When all volume controls are in minimum position. Stereo Output (L, R): -105 dB* or less Monaural Output (1, 2): -98 dB* or less When the stereo, monaural (1, 2) are in maximum position. Stereo Output (L, R): -94 dB* or less Monaural Output (1, 2): -95 dB* or less |
| Finish | Front Panel : Alumite, black Case : Steel, black |
| Dimensions | 483 (W) × 46 (H) × 301.8 (D) mm (19.02″ × 1.81″ × 11.88″) |
| Weight | 3.8 kg (8.38 lb) |
| Accessory | Rack mounting screw……4, Rubber foot……4, Knob (blue, small)……2, Knob (red, small)……2, Knob (blue, large)……1, Knob (red, large)……1 |
