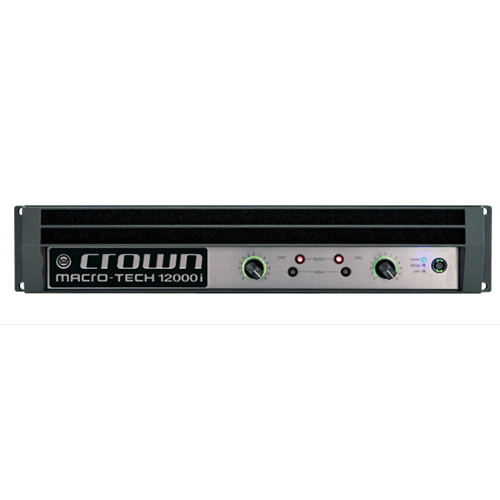

เครื่องขยายเสียง ยี่ห้อ CROWN รุ่น MA12000I
Macro-Tech I Series เป็น Amplifier รุ่นนึงของ Crown ที่ให้กำลังขับสูงเป็นพิเศษ แถมยังมีน้ำหนักที่เบา เพื่อให้เหมาะกับการใช้งาน Touring มีวงจร Signal Peocessing on Board พร้อมระบบเชื่อมต่อ Network ในตัว
The Crown Macro-Tech i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection.
คุณสมบัติ
- The Macro-Tech i Series continues the Macro-Tech legacy of unparalleled sonic accuracy and detail, putting sound quality above all else
- Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste
- Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road
- Global Power Supply — designed to deliver maximum power no matter what country you work in
- Built-in load, line voltage, input and output monitoring
- Standard Ethernet networking via System Architect® lets system operators monitor and control the amplifier from any location
สเปค
Frequency Response |
± 0.25dB |
Signal to Noise Ratio |
> 112dB |
THD |
< 0.1% |
THD+Noise |
< 0.1%, 20Hz to 20kHz |
Intermodulation Distortion |
< 0.35% |
Damping Factor |
> 5000 |
Crosstalk |
> 80dB |
Common Mode Rejection |
> 70dB Typical |
DC Output Offset |
< ±3mV |
Input Impedance |
20kΩ balanced, 10kΩ unbalanced |
Maximum Input Level |
+20dBu Typical |
Load Impedance |
Stereo: 1/2/4/8/16Ω; Bridge: 2/4/8Ω |
Input Sensitivity |
1.4Vrms, 32dB gain, 26dB gain |
Voltage Gain |
39.3dB to 24.5dB |
Required AC Mains (+/- 10%) |
Universal AC input, 100-240VAC, 50/60Hz |
Dimensions |
19″ x 3.5″ x 16.2″ (48.3 cm x 8.9 cm x 41.1 cm) |
Net Weight |
28 lbs (12.7 kgs) |
Shipping Weight |
36 lbs (16.3 kgs) |
IEC Power Connector |
20A |
