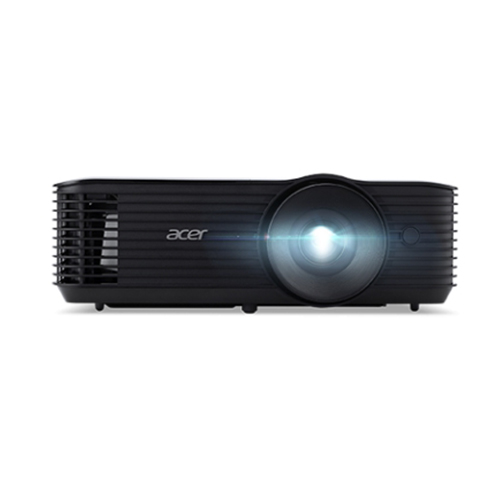

| PROJECTOR X1226AH |
1,920×1,200 / 4,000 ANSI Lumens / 4:3 / 20,000:1 |
| Projection System |
DLP® |
| Resolution |
XGA (1,024 x 768) |
| Max. Supported Resolution |
WUXGA (1,920 x 1,200) |
| Brightness |
4000 ANSI Lumens (Standard),3200 ANSI Lumens (ECO) |
| Aspect Ratio |
4:3 (Native),16:9 (Supported) |
| Contrast Ratio |
20,000:1 |
| Optical Zoom Ratio |
1.1X |
| Throw Ratio |
1.94 ~ 2.16 (51 inch inch@2m) |
| Projection Lens |
F= 2.41~2.53,f = 21.85~24.01mm,Manual Zoom & Focus |
| Projection Screen Size (Diagonal): |
23 inch inch ~ 300 inch inch (58cm ~ 762cm) |
| Projection Distance |
1.0m ~ 11.8m (3.3′ ~ 38.8′) |
| Keystone Correction |
+/-40° (Vertical, Manual & Auto) |
| Display Panel |
0.55 inch inch DarkChip 3 DMD |
| Audio |
3W Speaker x 1 |
| Lamp Type |
Osram 220W |
| Lamp Life |
6,000 Hours (Standard),7,000 Hours (ECO),10,000 Hours (ExtremeEco) |
| Noise Level |
32 dBA (Standard),24 dBA (ECO) |
| Projection Offset (By half height) |
130% |
| Lens Shift(By full height & Width) |
N/A |
| Horizontal Scan Rate |
15k ~ 100k Hz |
| Vertical Refresh Scan Rate |
24k ~ 120k Hz |
| Projection Mode |
Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability |
Yes |
| Digital Zoom |
2X |
| Input Interface |
Analog RGB/Component Video (D-sub), |
|
HDMI (Video, Audio, HDCP) |
|
PC Audio (Stereo mini jack) |
|
Composite Video (RCA) |
| Output Interface |
PC Audio (Stereo mini jack), |
|
DC Out (5V/1A, USB Type A), |
|
Analog RGB (D-sub) |
| Control Interface |
RS232 (D-sub) |
|
USB (Type A), share output port |
|
share output port |
| Network Interface |
N/A |
| Accessories in the Box : |
AC power cord |
|
VGA cable |
|
Remote control |
|
Battery for remote control |
|
Lens cap |
|
Quick start guide |
|
Security card |
| Weight |
2.8 Kg (6.17 lbs) |
| Dimensions |
313 x 240 x 113.7mm(12.3 inch inch x 9.4 inch inch x 4.5 inch inch) |
| Warranty |
3 Years Part and Labor Pick UP 3 Years (excluded cable and others accessory) / Lamp warranty with 1 year or 1000 hrs. |
