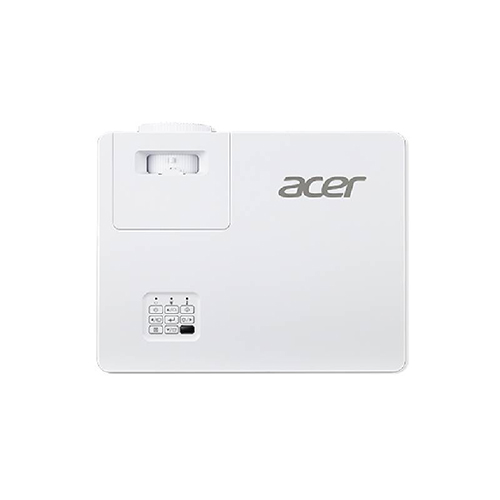

| PROJECTOR PL1520i (Laser) |
1,920×1,080 / 4,000 ANSI Lumens / 16:9 / 2,000,000:1 |
| Projection System |
DLP® |
| Native Resolution |
1080p (1,920 x 1,080) |
| Max. Supported Resolution |
4K2K (3,840 x 2,160) |
| Brightness |
4000 ANSI Lumens (Standard),3200 ANSI Lumens (ECO) |
| Aspect Ratio |
16:9 (Native),4:3(Supported) |
| Display Panel |
0.47 inch inch DarkChip 3 DMD |
| Contrast Ratio |
2,000,000:1 |
| Digital Zoom |
2X |
| Optical Zoom Ratio |
1.3X |
| Throw Ratio |
1.21~1.59 (75 inch inch@2.0m) |
| Projection Lens |
F = 2.5~2.93,f = 15.98mm ~ 21.42mm,Manual Zoom & Focus |
| Projection Screen Size (Diagonal) |
28 inch inch ~ 300 inch inch (72cm ~ 762cm) |
| Displayable Colors |
1.07 Billion Colors |
| Projection Offset (By half height) |
105%~115% |
| Lens Shift(By full height & Width) |
52.5% ~ 57.5% (Vertical Offset) wheel on top cover |
| Projection Distance |
1.0m ~ 8.0m (3.3 inch inch~26.4 inch inch’) |
| Keystone Correction |
+/-30° (Vertical, Manual & Auto),+/-30° (Horizontal, Manual),4-Corner adjustment |
| Audio |
10W Speaker x 1 |
| Lamp Type |
Laser Diode |
| Lamp Life |
20,000 Hours (Standard),30,000 Hours (ECO) |
| Noise Level |
31 dBA (Standard),28 dBA (ECO) |
| Horizontal Scan Rate |
15k ~ 100k Hz |
| Vertical Refresh Scan Rate |
24 ~ 120 Hz |
| Projection Mode |
Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability |
Yes |
| Accessories in the Box |
AC power cord |
|
Remote control |
|
Battery for remote control |
|
Lens cap |
|
User’s guide (CD-ROM) |
|
Quick start guide |
|
WirelessProjection-Kit (UWA5) |
| Input Interface |
Analog RGB/Component Video (D-sub), |
|
Composite Video (RCA), |
|
HDMI (Video, Audio, HDCP) , |
|
HDMI/MHL 2.0 (Video, Audio, HDCP 2.2), |
|
PC Audio (Stereo mini jack) |
| Output Interface |
PC Audio (Stereo mini jack), |
|
DC Out (5V/1.5A, USB Type A) |
| Control Interface |
RS232 (D-sub), |
|
USB (Micro B, service) |
| Network Interface |
USB (Type A) for wireless dongle |
| Weight |
4.5 Kg (9.9 lbs) |
| Dimensions |
337 x 265 x 119 mm (w/ feet) (13.3 inch inch x 10.4 inch inch x 4.7 inch inch) |
| Warranty |
3 Years Part and Labor Pick UP 3 Years (excluded cable and others accessory) / Lamp warranty with 3 year |
