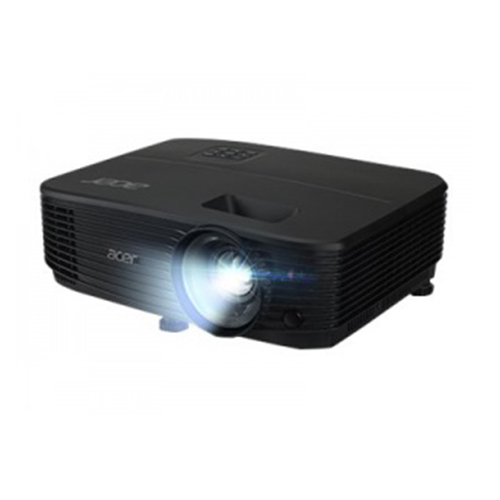

| PROJECTOR X1223HP |
DLP, XGA (1,024 x 768),Contrast Ratio 20,000:1 |
| Projection System |
DLP® |
| Display Panel |
0.55 inch DarkChip 3 DMD |
| Brightness |
4,000 ANSI Lumens (Standard),3,200 ANSI Lumens (ECO) (Compliant with ISO 21118 standard) |
| Native Resolution |
XGA (1,024 x 768) |
| Max. Supported Resolution |
WUXGA (1,920 x 1,200) |
| Aspect Ratio |
4:3 (Native),16:9 (Supported) |
| Contrast Ratio |
20,000:1 |
| Optical Zoom Ratio |
1.1X |
| Digital Zoom |
2X |
| Throw Ratio |
1.96 ~ 2.15 (50 inch @ 2 m) |
| Projection Lens |
F = 2.56 ~ 2.68,f = 22.0 mm ~ 24.1 mm,Manual |
| Projection Screen Size (Diagonal) |
23 inch ~ 300 inch (58 cm – 762 cm) |
| Projection Distance |
1.0m ~ 12.0m (3.3′ ~ 39.3′) |
| Projection Offset (By half height) |
120% |
| Lens Shift(By full height & Width) |
N/A |
| Keystone Correction |
+/-40° (Vertical, Manual) |
| Audio |
3W Speaker x 1 |
| Lamp Type |
Philips 210W |
| Lamp Life |
5,000 Hours (Standard),10,000 Hours (ECO),15,000 Hours (ExtremeEco) |
| Noise Level |
31 dBA (Standard),26 dBA (ECO) |
| Displayable Colors |
1.07 Billion Colors |
| Horizontal Scan Rate |
15k ~ 100k Hz |
| Vertical Refresh Scan Rate |
24 ~ 120 Hz |
| Projection Mode |
Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability |
YES |
| Dimensions |
299.5 x 220 x 105.1 mm (11.8 inch x 8.7 inchx 4.1 inch) With feet |
| Weight |
2.4 Kg (5.29 lbs) |
| Input |
Analog RGB/Component Video (D-sub) x 1 |
|
Composite Video (RCA) x 1 |
|
HDMI1.4a (Video, Audio, HDCP1.4) x 1 |
|
PC Audio (Stereo mini jack) x 1 |
| Output |
Analog RGB (D-sub) x 1, |
|
PC Audio (Stereo mini jack) x 1 |
|
USB Ctrl (Mini-B) x 1 |
| Control Interface |
RS232 (D-sub) x 1 |
|
N/A |
| Network Interface |
AC power cord |
| Accessories in the Box |
Remote control |
|
Battery for remote control |
|
Lens cap |
|
Quick start guide |
|
Security card |
| Warranty |
3 Years Part and Labor Pick UP 3 Years (excluded cable and others accessory) / Lamp warranty with 1 year or 1000 hrs. |
