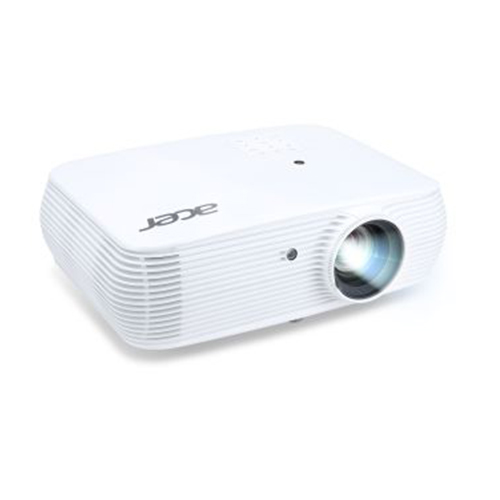

| PROJECTOR P1260Bi |
1,024 x 768 / 4,000 ANSI Lumens / 4:3 / 20,000:1 |
| Projection System |
DLP® |
| Resolution |
XGA (1,024 x 768) |
| Max. Supported Resolution |
WUXGA (1,920 x 1,200) |
| Brightness |
4,000 ANSI Lumens (Standard),3,200 ANSI Lumens (ECO) (Compliant with ISO 21118 standard) |
| Aspect Ratio |
4:3 (Native),16:9 (Supported) |
| Contrast Ratio |
20,000:1 |
| Optical Zoom Ratio |
1.2X |
| Throw Ratio |
1.94~2.33 (50 inch inch @ 2 m) |
| Projection Lens |
F = 2.42 ~ 2.62,f = 22mm ~ 25.79mm,Manual Zoom and Manual Focus |
| Projection Screen Size (Diagonal): |
40 inch inch ~ 300 inch inch (102cm ~ 762cm) |
| Projection Distance |
1.0m ~ 12.1m (3.3′ ~ 39.7′) |
| Keystone Correction |
+/-30° (Vertical, Manual),+/-30° (Horizontal, Manual), 4-Corner adjustement |
| Display Panel |
0.55 inch inch DarkChipTM 3 DMD |
| Audio |
2W Speaker x 1 |
| Lamp Type |
Philips 210W |
| Lamp Life |
5,000 Hours (Standard),10,000 Hours (ECO),15,000 Hours (ExtremeEco) |
| Noise Level |
29 dBA (Standard),26 dBA (ECO) |
| Projection Offset (By half height) |
115% |
| Lens Shift(By full height & Width) |
N/A |
| Horizontal Scan Rate |
15k ~ 100k Hz |
| Vertical Refresh Scan Rate |
24 ~ 120 Hz |
| Projection Mode |
Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability |
YES |
| Digital Zoom |
1.8X |
| Input Interface |
Analog RGB/Component Video (D-sub) x 1 |
|
HDMI1.4(Video, Audio, HDCP) x 2 |
|
PC Audio (Stereo mini jack) x 1 |
|
USB (Wireless dongle, Type A) x 1 |
| Output Interface |
Analog RGB (D-sub) x 1, |
|
PC Audio (Stereo mini jack) x 1 |
|
DC Out (5V/1.5A, USB Type A) x 1 |
| Control Interface |
USB Ctrl (Mini-B) x 1 |
|
RS232 (D-sub) x 1 |
| Network Interface |
Ethernet port (RJ45) x 1 |
| Accessories in the Box : |
AC power cord |
|
Remote control |
|
Battery for remote control |
|
User’s guide (CD-ROM) |
|
Quick start guide |
|
Multimedia User’s guide (CD-ROM) |
|
Multimedia Quick start guide |
|
Carrying case |
|
WirelessProjection-Kit (UWA5) |
| Weight |
2.6 Kg (5.74 lbs) |
| Dimensions |
332 X 244 X 108 (w/ feet)(13.1 inch inch X 9.6 X 4.6) |
| Warranty |
3 Years Part and Labor Pick UP 3 Years (excluded cable and others accessory) / Lamp warranty with 1 year or 1000 hrs. |
| Displayable Colors |
1.07 Billion Colors |
