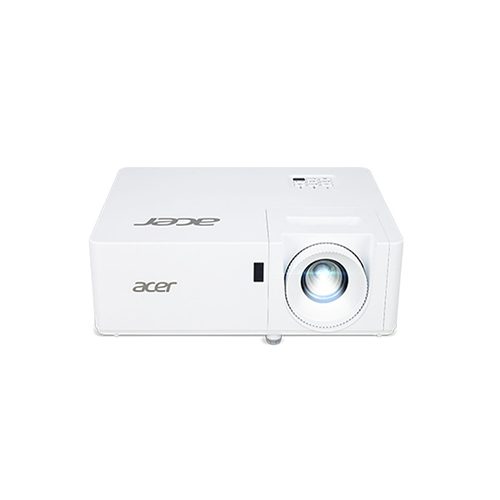

| PROJECTOR XL1320W |
DLP, WXGA (1,280 x 800),Contrast Ratio 2,000,000:1 Dynamic Black |
| Projection System |
DLP® |
| Native Resolution |
WXGA (1,280 x 800 |
| Max. Supported Resolution |
4K2K (3,840 x 2,160) |
| Brightness |
3,100 ANSI Lumens (Standard), 2,480 ANSI Lumens (ECO)(Compliant with ISO 21118 standard) |
| Aspect Ratio |
16:10 (Native),4:3/16:9 (Supported) |
| Display Panel |
0.65 inchDarkChip 3 DMD |
| Contrast Ratio |
2,000,000:1 |
| Digital Zoom |
2X |
| Optical Zoom Ratio |
1.1X |
| Throw Ratio |
1.54~1.72 (60 inch@2.37m) |
| Projection Lens |
F = 2.41~2.53,f = 21.85~ 24.00mm,Manual Zoom & Focus |
| Projection Screen Size (Diagonal) |
0 inch ~ 300 inch (76cm ~ 762cm) |
| Displayable Colors |
1.07 Billion Colors |
| Projection Offset (By half height) |
100%~112% |
| Lens Shift(By full height & Width) |
N/A |
| Projection Distance |
1.1m to 10m (3.6 inch~32.8 inch) |
| Keystone Correction |
+/-30° (Vertical, Manual & Auto) |
| Audio |
3W Speaker x 1 |
| Lamp Type |
Laser Diod |
| Lamp Life |
20,000 Hours (Standard),30,000 Hours (ECO) |
| Noise Level |
34 dBA (Standard),29 dBA (ECO) |
| Horizontal Scan Rate |
15k ~ 100k Hz |
| Vertical Refresh Scan Rate |
24 ~ 120 Hz |
| Projection Mode |
Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability |
YES |
| Accessories in the Box |
AC power cord |
|
Remote control |
|
Battery for remote control |
|
Lens cap |
|
User’s guide (CD-ROM) |
|
Quick start guide |
| Input Interface |
Analog RGB/Component Video (D-sub) x 1 |
|
Composite Video (RCA) x 1 |
|
HDMI 1.4a (Video, Audio, HDCP) x 1 |
|
HDMI 1.4 (Video, Audio, HDCP) x 1 |
|
PC Audio (Stereo mini jack) x 1 |
| Output Interface |
PC Audio (Stereo mini jack) x 1 |
|
DC Out (5V/1.5A, USB Type A) x 1 |
|
Analog RGB/Component Video (D-sub) x 1 |
| Control Interface |
RS232 (D-sub) x 1 |
|
USB (Micro B, service) x 1 |
| Weight |
3.9kg (8.6 lb.) |
| Dimensions |
337 x 265 x 119 mm (w/ feet) (13.3 inch x 10.4 inch x 4.7 inch) |
| Warranty |
3 Years Part and Labor Pick UP 3 Years (excluded cable and others accessory) / Lamp warranty with 3 year |
