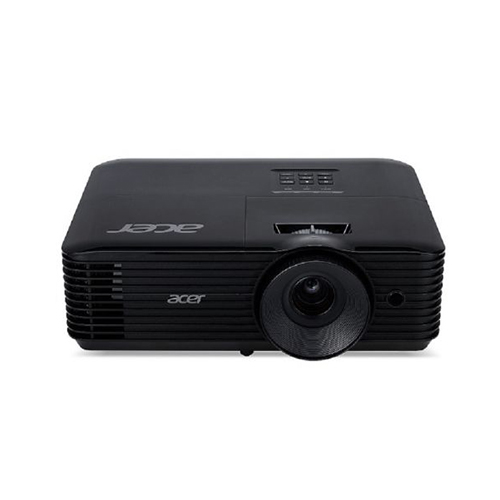

| PROJECTOR X1328WHK |
DLP, WXGA (1,280 x 800) ,Contrast Ratio 20,000:1, 4,500 ANSI Lumens |
| Display Panel |
0.65 inch DarkChip 3 DMD |
| Brightness |
4,500 ANSI Lumens (Standard), 3,200 ANSI Lumens (ECO),(Compliant with ISO 21118 standard) |
| Native Resolution |
WXGA (1,280 x 800) |
| Max. Supported Resolution |
WUXGA (1,920 x 1,200) |
| Aspect ratio |
16:10 (Native),4:3/16:9 (Supported) |
| Contrast ratio |
20,000:1 |
| Optical Zoom Ratio |
1.1X |
| Digital Zoom |
2X |
| Throw ratio |
1.55 ~ 1.7 (60 inch @ 2 m) |
| Projection lens |
F= 2.41~2.53,f = 21.85~24.00mm,Manual Zoom & Focus |
| Projection Screen Size (Diagonal) |
27 inch ~ 300 inch (75 cm – 762 cm) |
| Projection Distance |
1.0m ~ 10.0m (3.3′ ~ 32.7′) |
| Projection Offset (By half height) |
100% |
| Lens Shift(By full height & Width) |
N/A |
| Keystone Correction |
+/-40° (Vertical, Manual) |
| Audio |
3W Speaker x 1 |
| Lamp Type |
Philips 220W |
| Lamp Life |
6,000 Hours (Standard),10,000 Hours (ECO),15,000 Hours (ExtremeEco) |
| Noise level |
26 dBA (ECO) |
| Displayable Colors |
1.07 Billion Colors |
| Network Interface |
N/A |
| Horizontal Scan Rate |
15k ~ 100k Hz |
| Vertical Refresh Scan Rate |
24 ~ 120 Hz |
| Projection Mode |
Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability |
YES |
| Dimensions |
313 x 240 x 113.7mm (12.3 inch x 9.4 inch x 4.5 inch) |
| Weight |
2.8 Kg (6.17 lbs) |
| Input interface |
HDMI 1.4a (Video, Audio, HDCP1.4) x 1 |
|
PC Audio (Stereo mini jack) x 1 |
| Output interface |
PC Audio (Stereo mini jack) x 1 |
|
DC Out (5V/1A, USB Type A) x 1 |
| Control interface |
RS232 (D-sub) x 1 |
|
USB (Type A) x 1, share output port |
| Accessories in the Box |
AC power cord |
|
VGA cable |
|
Remote control |
|
Battery for remote control |
|
Lens cap |
|
Quick start guide |
|
Carrying case (Optional by P/N) |
|
Security card |
| Warranty |
3 Years Part and Labor Pick UP 3 Years (excluded cable and others accessory) / Lamp warranty with 1 year or 1000 hrs. |
