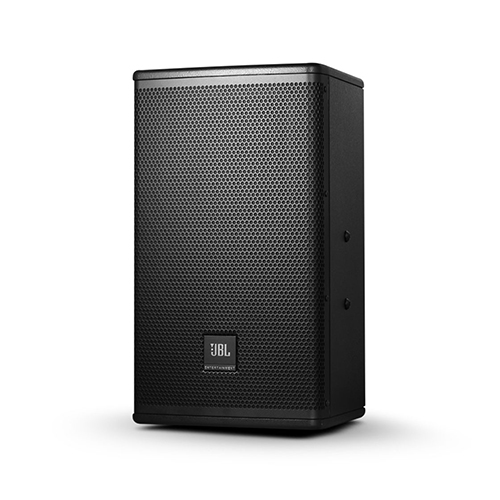

ตู้ลำโพง ยี่ห้อ JBL รุ่น MTS10

MTS10 is a professional-grade 10” (254 mm) two-way speaker system designed for karaoke rooms. The twoway speaker combines a custom-made 10” woofer with a patent JBL 2414H-C compression driver, and stands itself out for high power handling, large dynamic, warm vocal ranges and extended low bands. Its 70° × 100° coverage pattern provides smooth and even coverage whether installed in vertical or horizontal orientation.

MTS10 is designed in a low profile and can easy blend into any karaoke rooms. The rugged enclosure is constructed of 15 mm high quality MDF and finished in a durable coating. The front grille is made from 18-gauge steel and backed with acoustic fabrics for protection of drivers and components inside. A Neutrik® Speakon® NL4MP connector is provided for reliable connection with a professional ampli fier. To meet different installation requirements, three (3) pairsof M10 threaded suspension points and a 35 mm polemount socket are made available.

• 10″ custom LF driver featuring high-power handling and extended low frequency response
• JBL patent compression HF driver for warm vocal reproduction in great detail
• Enclosure constructed of 15 mm MDF with durable painting
• 70° × 100° coverage pattern with smooth response on and off axis
• 18-gauge steel front grille for protection of internal components
• 35 mm pole-mount socket

Specifications:

System:

• System Type: 10″, 2-way, bass-reflex
• Frequency Range (-10 dB)1 : 50 Hz – 20 kHz
• Frequency Response (±3 dB)1 : 85 Hz – 18 kHz
• Sensitivity (1w@1m)1 : 94 dB
• Nominal Impedance: 8 Ohms
• Maximum SPL2 : 119 dB (125 dB peak)
• Power Rating3 (Continuous/Program/Peak):  300 W/600 W/1200 W
• Coverage Pattern: 70° × 100° (H × V)

Physical:

• Dimensions (H × W × D): 524 mm × 297 mm × 320 mm 20.6 inch × 11.7 inch × 12.6 inch
• Net Weight: 14.2 Kg (31.3 lbs)
• LF Driver: 1 × 10″ (254 mm) woofer
• HF Driver: 1 × JBL 2414H-C
• Input Connectors: 1 × Neutrik® Speakon® NL4MP
• Enclosure Construction: Trapezoid, 15 mm, MDF
