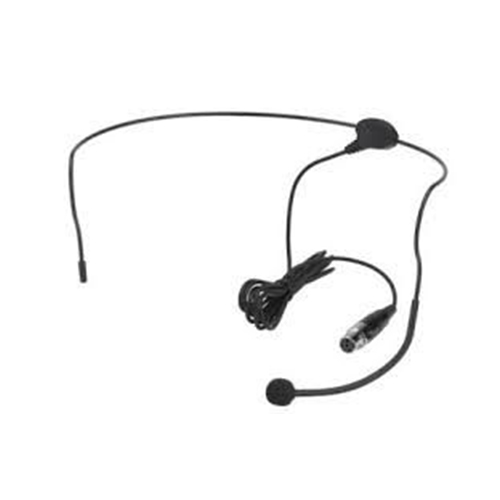

HEAD-WORN MICROPHONE ยี่ห้อ BOSCH รุ่น MW1-HMC

• Optional use with belt-pack transmitters MW1-LTXFx
• Comfortable and lightweight
• Miniature condenser microphone with omnidirectional pick‑up pattern
• No proximity effect

Technical specifications

Electrical

• Power source from Belt-pack transmitter MW1-LTX-Fx
• Transducer Condenser
• Polar pattern Omni-directional
• Frequency range 60 to 15000 Hz
• Sensitivity 10 mV/Pa
• Max. SPL for 1% THD 130 dB (SPL)
• Impedance 2200 ohm ± 30%

Mechanical

• Dimensions (H x W) 160 x 140 mm (6.30 x 5.514 in)
• Color Charcoal with white
• Weight 32 g (0.07 lb)
• Cable length 1.45 m (4.76 ft)

Environmental

• Operating temperature -25 °C to +55 °C (-13 °F to +131 °F)
• Storage temperature -40 °C to +70 °C (-40 °F to +158 °F)
• Relative humidity <95%
