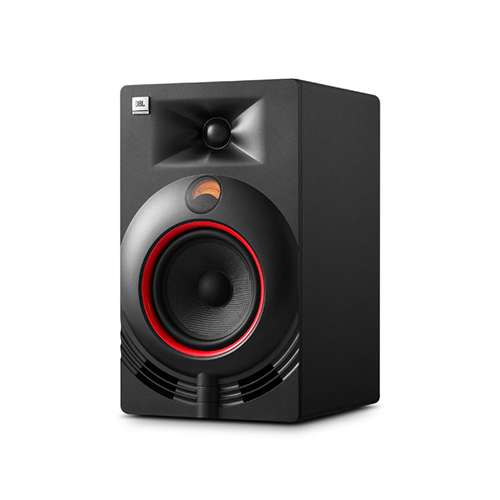

5” Full-Range Powered Reference Monitor ยี่ห้อ JBL รุ่น NANO K5
The NANO K5 powered reference monitor is a 5” standalone speaker that delivers legendary JBL sound quality andaccuracy for audio production applications. Perfect for home or professional studios, the NANO K5 features thepremium audio performance and detail needed for referencing, mixing and mastering.
Like the rest of the NANO K Series, the K5 features JBL’s patented Image Control Waveguide technology—derived from the flagship M2 master reference monitors—which delivers excellent depth and detail across a broad sweet spot. With this level of accuracy and performance, the monitors provide an ideal referencing experience that allows you to make critical decisions about your mix.
The NANO K5 features a vintage-style VU meter, which is positioned between the tweeter and woofer for quick monitoring of input levels.
With iconic JBL audio quality, a stylish form factor and simple controls, the NANO K5 reference monitor is ideal for any studio or workspace.
- Legendary JBL sound quality and accuracy for audio production
- Image Control Waveguide delivers precise imaging and clarity with a broad sweet spot
- Optimally positioned tweeter and woofer provides aligned acoustic center and eliminates phasing issues found in other speakers
- Vintage-style VU meter offers quick and simple monitoring of levels
- Stylish design with bright orange ring around woofer and musicthemed silhouette on rear
- Power switch and volume control on the front panel offer easy control
- Pairs perfectly with JBL NANO KX Bluetooth volume controller for Bluetooth integration and wireless streaming capabilities
TECHNICAL SPECIFICATIONS
- FREQUENCY RANGE 42 Hz – 20 kHz
- CROSSOVER Amp 2.8 kHz
- MAXIMUM SPL (@1M) 109 dB
- MAXIMUM INPUT LEVEL Unbalanced: +6 dBV; Balanced: +20.3 dBV
- INPUTS 1 x RCA (unbalanced); 1 x TRS or 1 x XLR (balanced)
- INPUT SENSITIVITY(-10 dBV INPUT) 92 dB @ 1m
- HF DRIVER SIZE 0.98” (25 mm)
- LF DRIVER SIZE 5.25” (133.4 mm)
- HF DRIVER POWER AMP 60 W Class AB
- LF DRIVER POWER AMP 60 W Class AB
- HF TRIM CONTROL +1 dB, 0 dB,-1 dB, -2 dB @ 10 kHz
- LF TRIM CONTROL +2 dB, 0 dB,-1 dB, -2 dB @ 60 Hz
- AC INPUT VOLTAGE 220 VAC ±10%, 50 – 60 Hz
- THD+N < 0.2%
- NOISE < 0.3 mV
- S/N > 95 dB
- ENCLOSURE CONSTRUCTION 12 mm MDF
- ENCLOSURE FINISH PVC
- BAFFLE CONSTRUCTION ABS + PC
- DIMENSIONS (H x W x D) 317.3 x 186.8 x 229 mm
- WEIGHT 4.4 kg
- DISPLAY CARTON (H x W x D) 300 x 256 x 400 mm
- SHIPPING CARTON (H x W x D) 318 x 274 x 420 mm
- SHIPPING WEIGHT 5.62 kg
- UNIT(S) PER PACKAGE 1 piece
