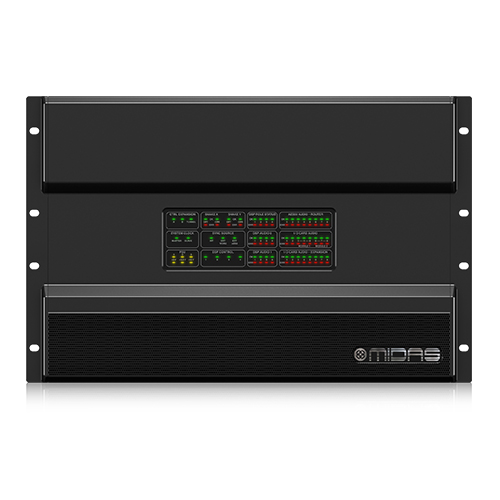

High-Performance Audio System Engine ยี่ห้อ MIDAS รุ่น NEUTRON
High-Performance Audio System Engine with 192 Bidirectional Channels and 96 kHz Sample Rate
Features
- Audio System Engine with industry leading 108 Gigaflops digital signal processing performance
- HyperMAC Router with 192 bidirectional channels over copper and optical fibre
- 40 bit floating point processing with 96 kHz sample rate
- Dual redundant connection to control centre for enhanced reliability
- Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
- Fitted with 4 DSP cards as standard for N+1 redundant operation
- Expansion card slot for additional connectivity options
- Features Neutrik etherCON* AES50 and Ethernet control network ports
- Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection
- Rugged 7U rackmount chassis for durability in portable applications
- Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
Specification
General specifications
| Dimensions | 7 U high
425 mm deep |
| Net weight | 25.5 kg |
| Shipping weight | approx. 30kg |
| AC requirements | 100 V to 240 V
50 Hz to 60 Hz |
| Power consumption at 115 V: | |
| 2 PSUs | 1.10 A, 126.5 W |
| 3 PSUs | 1.15 A, 132.25 W |
| Power consumption at 230 V: | |
| 2 PSUs | 0.54 A, 124.2 W |
| 3 PSUs | 0.69 A, 158.7 W |
| Operating temperature range | +5°C to +40°C |
| Storage temperature range | -20°C to +60°C |
Inputs and outputs
| System inputs and outputs | |
| System connector | 8 x AES50 (24 channels of bi-directional digital audio) on etherCON XLR |
| Snake connector (copper) | HyperMac (192 channels of bi-directional digital audio) on etherCON XLR |
| Duplicate snake connector (copper) | HyperMac (192 channels of bi-directional digital audio) on etherCON XLR |
| Snake connector (fibre) | HyperMac (192 channels of bi-directional digital audio) on opticalCON XLR |
| Duplicate snake connector (fibre) | HyperMac (192 channels of bi-directional digital audio) on opticalCON XLR |
| Miscellaneous inputs and outputs | |
| Word clock IN connector | BNC |
| Word clock OUT connector | BNC |
| AES3 Sync IN connector | 3-pin XLR |
| AES3 Sync OUT connector | 3-pin XLR |
| Ethernet Tunnel | etherCON XLR |
| Control Expansion | 2 x etherCON XLR |
