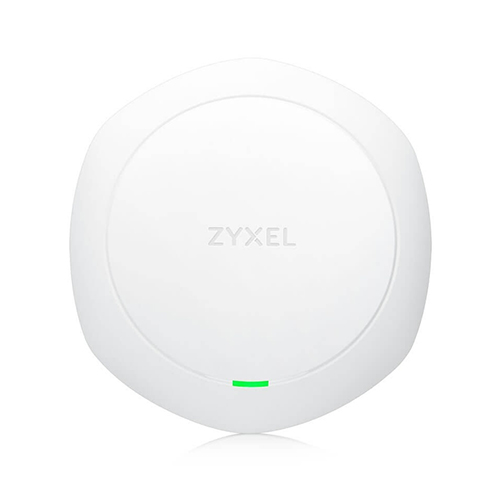

802.11ac Wave2 Dual-Radio Unified Access Point ยี่ห้อ ZYXEL รุ่น NWA5123-AC HD

Cloud management is a simpler, faster and much more efficient way to handle larger networks. However Zyxel knows that it’s not always easy for administrators of busy venues to go for cloud immediately. In response to this challenge, the Zyxel NWA5123-AC HD 11ac Wave 2 Dual-Radio Unified Pro Access Point featuring NebulaFlexTM Pro offers the full flexibility for users to switch among standalone, controller-managed and cloud-managed modes. In addition, it comes with a 1-year bundled Nebula Professional pack license* that eliminates immediate licensing cost when migrating to full-featured cloud management

The Zyxel NWA5123-AC HD is a Wave 2 dual-radio 3×3 MU-MIMO access point with a combined data rate of up to 1.6 Gbps. Its superior hardware design with next generation beamforming technology and advanced noise suppression, the NWA5123-AC HD delivers increased coverage and improved connection speeds for every client. The high-performance NWA5123-AC HD is future-proof for the ever-growing mobility demands in high-density environments such as campuses and hotels.

• NebulaFlexTM Pro allows users to switch among standalone, on-premises controller managed or intuitive Nebula cloud managed modes as needed
• Excellent wireless coverage and performance with the latest 3×3 Wave 2 802.11ac technology
• Next generation beamforming technology delivers maximum coverage
• Innovative MU-MIMO technology increases downstream throughput by simultaneously talking to multiple devices
• Solid state capacitors and advanced heat dissipation ensure high reliability and long life—even in the toughest environments
• Advanced Cellular Coexistence minimizes interference from 3G/4G cellular networks

Specifications

Models	NWA5123-AC HD 802.11ac Wave2 Dual-Radio Unified Access Point
RF Specifications
802.11n/ac premium features	802.11n: 2×2 MIMO with two spatial stream (SU-MIMO) 802.11ac: 3×3 MIMO with three spatial stream (SU-, or MU-MIMO) 802.11ac beamforming (transmit beamforming) Maximal ratio combining (MRC) Low End Sensitivity Improvements (LESI) Time Domain Channel Smoothing 20-, 40- and 80-MHz channels PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay diversity (CSD) support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check (LDPC) support
Typical transmit output power (dBm) *1	US (FCC) 2.4 GHz: 25 dBm US (FCC) 5 G GHz: 28 dBm EU (ETSI) 2.4 GHz: 20 dBm EU (ETSI) 5 G GHz: 26 dBm
Antenna gain	2.4 GHz: 3 dBi; 2×2 MIMO 5 GHz: 3 dBi 3×3 MIMO
Support data rate	802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams; GI=400ns) 802.11ac:up to 1300 Mbps in MCS9 (80MHz; 3 Spatial Streams; GI=400ns)
Receive sensitivity	Min. Rx sensitivity up to -103 dBm
Interfaces
Number of 10/100/1000M LAN	2 x switch ports
Console port	4-Pin serial
Input power requirements	Direct DC power or Power over Ethernet (PoE)*2
PoE	802.3at (full mode) 802.3af (Restrict 2.4G & 5G radio to one transmit stream only.)
PoE power draw	15.5 W (802.3at PoE)
WLAN
WLAN maximum throughput	Up to 1600 Mbps
Fast roaming	Pre-authentication and PMK caching
Wireless Security	WPA/WPA2-PSK WPA/WPA2-Enterprise WLAN access control list EAP type IEEE 802.1X MAC filtering Web authentication *3 Layer-2 isolation RADIUS authentication Microsoft AD authentication*3 LDAP authentication *3 MAC authentication *3 Rogue AP detection
Number of SSID	16
QoS	WMM WMM power save U-APSD DiffServ marking
Network
IPv6 support	Yes
VLANs	Yes
DHCP client	Yes
Management
Operating mode	Nebula Cloud managed Controller-managed Standalone
ZON Utility*4	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC)
Zyxel AP Configurator*5	Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer *6	Wi-Fi AP planning Wi-Fi coverage detection Wireless health management
Standalone AP mode	Yes
Managed AP mode	Yes
CLI	Yes
SNMP	v2c/v3
Standard Compliance
Ethernet	IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3af/at
PoE	IEEE 802.3af/at
WLAN	802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio	FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EN 60601-1-2
EMC	FCC Part 15B EN 301 489-1 EN 301 489-17 EN55032 EN55024 EN61000-3-2/-3 BSMI CNS13438
Safety	EN 60950-1 IEC 60950-1 BSMI CNS14336-1
Physical Specifications and others
Item	Dimensions (WxDxH)(mm/in.) 211 x 223 x 39 / 8.31 x 8.78 x 1.54 Weight (g/lb.) 750/1.653
Packing	Dimensions (WxDxH)(mm/in.) 251 x 247 x 55/9.88 x 9.72 x 2.17 Weight (g/lb.) 990/2.182
Included accessories	Wall/ceiling mount plate
Plenum rating	Yes
Kensington lock support	Yes
Power supply	Input: AC 100-240V, 50~60Hz Output: DC +12V 2A (Sold separately)
MTBF (hr)	4,134,738
Environmental Specifications
Operating	Temperature -20°C to 60°C / -4°F to 140°F Humidity 10% to 90% (Non-condensing)
Storage	Temperature -40°C to 70°C / -40°F to 158°F Humidity 10% to 90%
