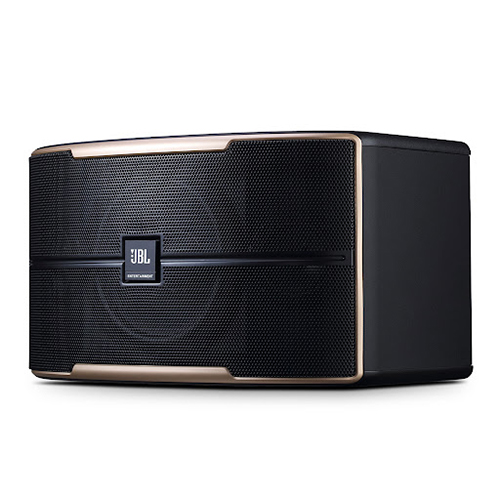

ตู้ลำโพง ยี่ห้อ JBL รุ่น Pasion 6-PAK

Built with JBL’s standard of excellence, the Pasión 6 is a passive 6.5” full-range karaoke loudspeaker that is designed for sound reinforcement for karaoke applications. In addition to superb sound quality, the Pasión 6 features a premium, sleek design that fits a variety of commercial KTV venues and restaurant entertainment rooms. Adding to the stylish form factor, the full-range speaker features an illuminated and rotatable JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Altogether, with outstanding vocal and bass performance and striking aesthetics, the JBL Pasión 6 is perfect for a variety of KTV applications and provides karaoke-goers a memorable karaoke experience.

• Passive 2-way, bass-reflex full-range karaoke loudspeaker
• 6.5” low-frequency woofer and dual 3” high-frequency tweeters
• Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
• Rated power of 100W and sensitivity of 87db offer unmatched output and sound quality
• JBL signature karaoke tuning provides excellent vocal and bass performance
• Sleek, stylish and modern design that is wellsuited for a wide array of interior room designs
• PSL (Passive Sound Lighting) Technology illuminates the rotatable JBL Entertainment logo

SPECIFICATIONS

• SYSTEM TYPE: 6.5″, 2-way, bass-reflex
• FREQUENCY RANGE (-10 dB)1: 55 Hz – 17 kHz
• FREQUENCY RESPONSE (±3 dB)1: 75 Hz – 14 kHz
• SENSITIVITY (1W@1M)1: 87 dB
• NOMINAL IMPEDANCE: 8 Ohms
• MAXIMUM SPL2: 107 dB (113 dB peak)
• POWER RATING3 (CONTINUOUS/PROGRAM/PEAK):  100 W/200 W/400 W
• COVERAGE PATTERN: 100° × 120° (H × V)
• DIMENSIONS (H × W × D): 222 mm × 396 mm × 257 mm 8.7 inch × 15.6 inch × 10.1 inch
• NET WEIGHT: 7.5 Kg (16.5 lbs)
• LF DRIVER: 1 × 6.5″ Woofer
• HF DRIVER: 2 × 3″ Tweeter
• INPUT CONNECTORS: Binding Post
• ENCLOSURE CONSTRUCTION: Vinyl covered MDF
