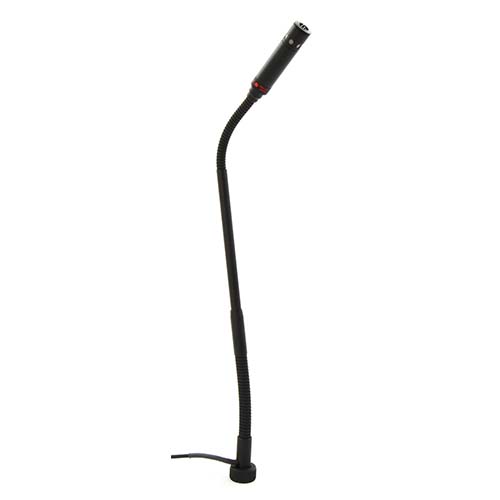

This double-gooseneck cardioid condenser microphone with integral power module and 5/8″-27 adapter-mount is ideal for boardroom, school, government, house of worship, and other installed applications. Featuring a wide-range condenser element with low-mass diaphragm for superior performance, the microphone’s self-contained electronics eliminate need for external power modules. The 9.8′ (3.0 m) permanently attached cable is terminated with a 3-pin XLRM connector.
Available configurations:
PRO 47T: Overall length of 12.40″ (315.0 mm).
Features
- Wide-range condenser element with low-mass diaphragm for superior performance
- Self-contained electronics eliminate need for external power modules
- Flat, smooth frequency response
- Quiet, fixed-placement, long-life gooseneck
- Direct mounts to any 5/8″-27 stand, or to included threaded mounting stud
- 9.8′ (3.0 m) cable permanently attached between microphone and XLRM-type connector
Specifications
| Microphones |
| Element |
Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern |
Cardioid |
| Frequency Response |
70-16,000 Hz |
| Open Circuit Sensitivity |
-37 dB (14.1 mV) re 1V at 1 Pa |
| Maximum Input Sound Level |
134 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range |
106 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio |
66 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements |
9-52V DC, 2 mA typical |
| Weight |
2.2 oz (63 g) |
| Cable |
9.8′ (3.0 m) cable permanently attached between microphone and XLRM-type connector |
| Dimensions |
PRO47T: 12.40″ (315.0 mm) long, PRO47TL: 15.79″ (401.0 mm) long, 0.47″ (12.0 mm) head diameter |
| Output Connector |
3-pin XLRM-type on cable |
| Accessories Included |
AT8146 windscreen; AT8425 5/8″-27 threaded mounting stud |
| Audio-Technica Case Style |
M22 |
